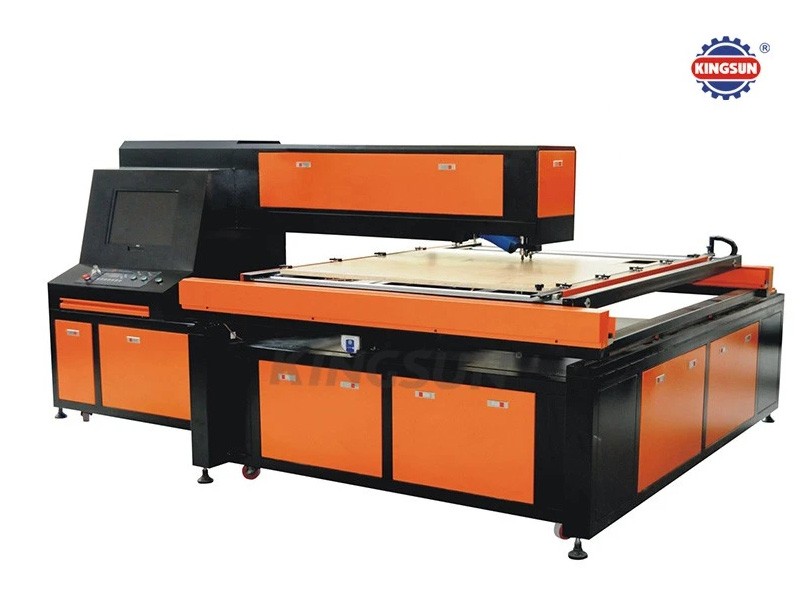

China professional die board laser cutting machines supplier

Product Details

Die board laser cutting machine is high-technology type laser cutting machine, which integrated computer, laser technology, automatic control and precise optical machinery.

FAQs

F

What should I do when the machine malfunctions?

All of our sales engineers have been trained in handling common troubleshooting issues and are available online for 20 hours to help you solve problems. Provide solutions within 24 hours and continue to follow up until issues are solved. We have experienced technician and engineers’ team to provide further after-sales services, make sure you use our machines without any technician problem.

F

What are these machines used for?

They are used to make cutting plates for die-cutting machines, bending machines that can bend blades, and laser cutting machines that can cut wooden boards to make complete cutting plates.

F

How do I make the blade I want?

Both machines using CAD and then input the machine. The computer can bending blades and cut wooden boards based on the CAD drawings.

F

Is the machine easy to operate?

Very simple, designer only need to import CAD and then follow the software operation. We have detailed instructions to teach you how to use the software.

Machine Features

Laser position fixed (laser head fixed, cutting material plywood moving)
Double direction imported high precision ball-screw guide.
Low consumption of voltage, about three kilowatt per hour only
High series industrial water chiller CW-6000, America lens
High strength of machine bed, long-lasting working stable
No need of assistant gas during cutting, air only
Easy to adjust laser focus, operate machine easily after training well.

FAQs

F

What are these machines used for?

They are used to make cutting plates for die-cutting machines, bending machines that can bend blades, and laser cutting machines that can cut wooden boards to make complete cutting plates.

F

How do I make the blade I want?

Both machines using CAD and then input the machine. The computer can bending blades and cut wooden boards based on the CAD drawings.

F

Is the machine easy to operate?

Very simple, designer only need to import CAD and then follow the software operation. We have detailed instructions to teach you how to use the software.

F

What should I do when the machine malfunctions?

All of our sales engineers have been trained in handling common troubleshooting issues and are available online for 20 hours to help you solve problems. Provide solutions within 24 hours and continue to follow up until issues are solved. We have experienced technician and engineers’ team to provide further after-sales services, make sure you use our machines without any technician problem.

Main Specifications

Model	KLC300-1209	KLC300-1215	KLC300-1216
Processing scale	1200x900mm	1200x1500mm	1200x1600mm
Machine weight	1400kgs	1500kgs	1500kgs
Laser type	CO2 Sealed laser tube
Laser power	300W/400W
Driving motor	High grade stepper/Panasonic Servo
Cutting depth	25-30meters/hour for 18mmplywood
Cutting thickness	6-25mm die cutting plywood
Cutting precision	±0.05MM
Re-position accuracy	≤0.03mm
USB port connection	Yes
Operating temperature	0-45°C
Mold knife thickness	0.45mm,0.51mm, 0.71mm,1.05mm…etc. controllable
Cutting speed	25-30meters/hour 18-20mm plywood
Protective gas	Dry and oil-free air
Power supply	single-phase electricity 220V±5% 50HZ 10A
Numerical control panel	LCD screen, light-touched key-press
Software supported	CorelDraw, AutoCAD, Photo Shop,
Graphic format support	PLT,DXF,BMP,JPG,GIF,PGN,TIF
EMS memory	attached 64MB memory, can work under off-line condition
Application	Plywood, MDF board, acrylic board.
Assistant equipment	Air dryer, industrial chiller, exhaust fan, computer system
Recommend spare parts	Laser tube and lens

FAQs

F

What are these machines used for?

They are used to make cutting plates for die-cutting machines, bending machines that can bend blades, and laser cutting machines that can cut wooden boards to make complete cutting plates.

F

What should I do when the machine malfunctions?

All of our sales engineers have been trained in handling common troubleshooting issues and are available online for 20 hours to help you solve problems. Provide solutions within 24 hours and continue to follow up until issues are solved. We have experienced technician and engineers’ team to provide further after-sales services, make sure you use our machines without any technician problem.

F

Is the machine easy to operate?

Very simple, designer only need to import CAD and then follow the software operation. We have detailed instructions to teach you how to use the software.

F

How do I make the blade I want?

Both machines using CAD and then input the machine. The computer can bending blades and cut wooden boards based on the CAD drawings.

Inquiry Now

Please fill out the form below as best you can, our team will reply you within 24 hours.

*Name
Tel
*Email
Company
*Country
Address
*Message

Products

KLC-300 Series Die board Laser Cutting Machines

Product Details

FAQs

What should I do when the machine malfunctions?

What are these machines used for?

How do I make the blade I want?

Is the machine easy to operate?

Machine Features

FAQs

What are these machines used for?

How do I make the blade I want?

Is the machine easy to operate?

What should I do when the machine malfunctions?

Main Specifications

FAQs

What are these machines used for?

What should I do when the machine malfunctions?

Is the machine easy to operate?

How do I make the blade I want?

Inquiry Now

Video

Related Products

KT-830 Cutting Rule Bending Machines

KT-850 Model Cutting Rule Blade Bending Machines

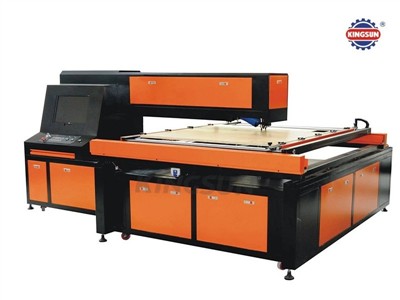

KLC-300 Series Die board Laser Cutting Machines
