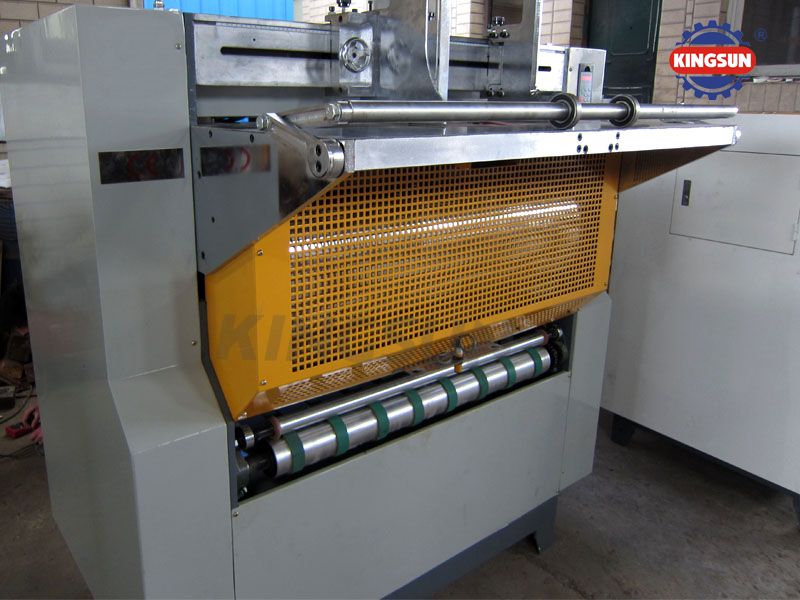

KL-1000-2 Grey Paper Board Scroll Grooving Machines
Features:

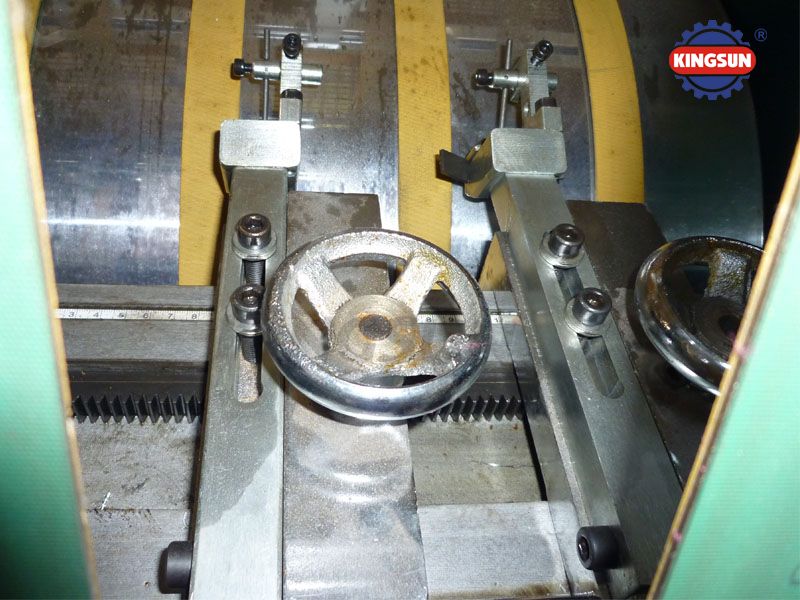

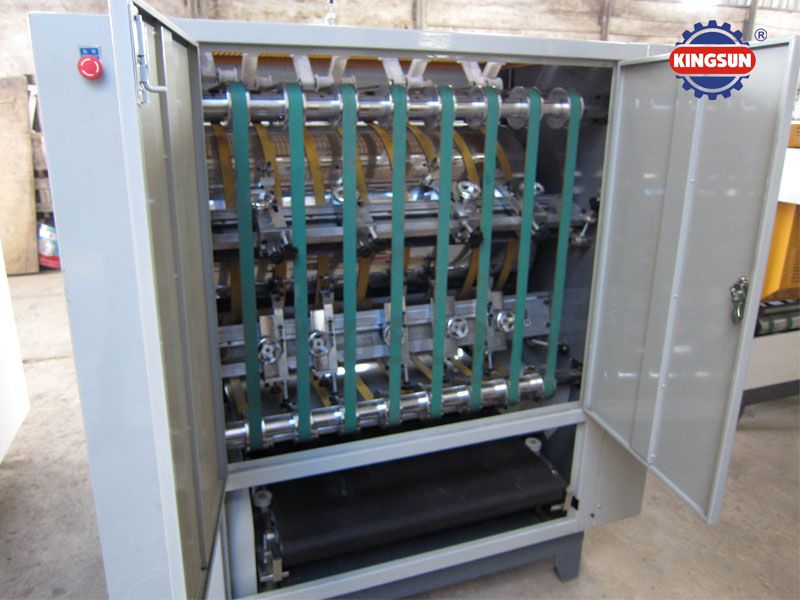

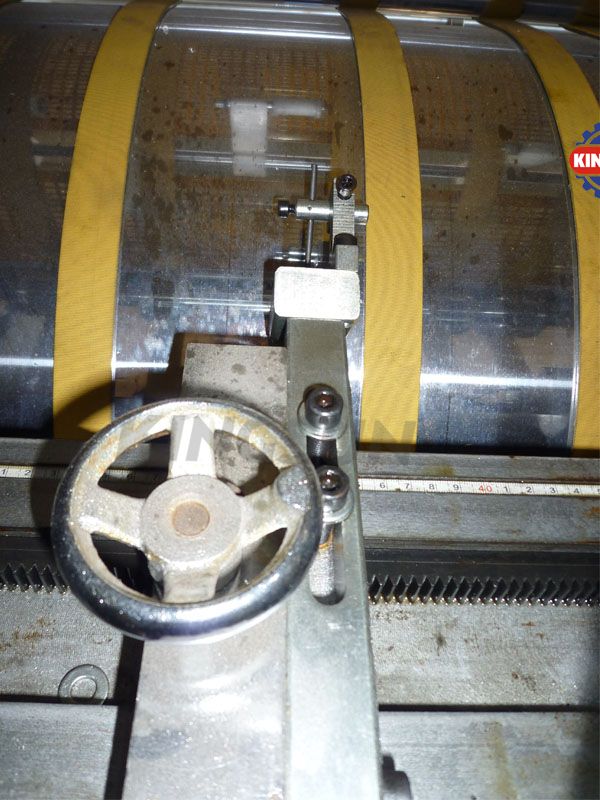

1.This machine is specially designed for notching V type groove (U type groove for options), used for industrial cardboard, gray cardboard, MDF board and the other cardboards. It adopts new way of transportation structure, wrap the cardboard on the entire surface of the roller (the diameter 60cm), it guarantees the groove more accurately, no deviation and be straight, the machine has the features of high accuracy, fast speed and with durable cutting blade.

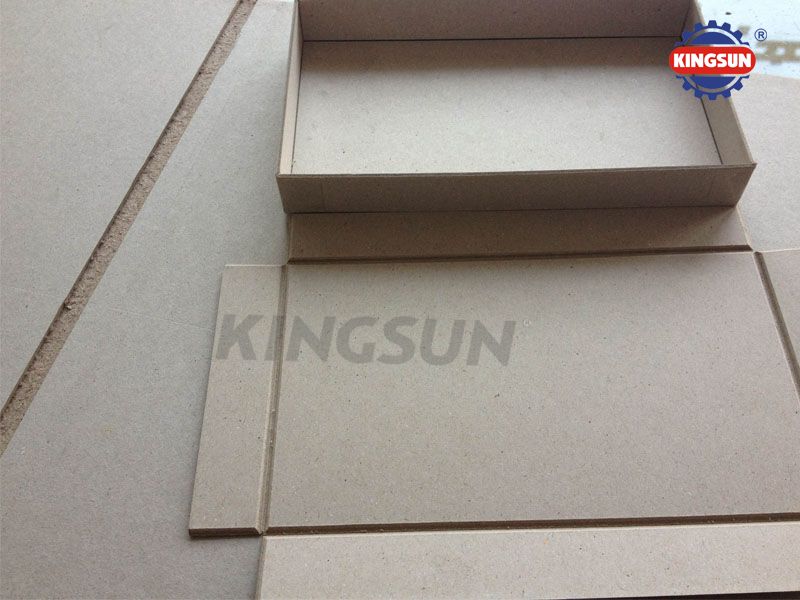

2.After notching, the surface of cardboard, clean and no dust.
3.Low power consumption and low noise, total power 3.7kw.
4.Able to produce 10000-18000 boxes every 8 hours.
5.The cutting degree is adjustable.
6.Works for different cardboard thickness at 0.5mm-4mm
Technical specifications:
|
Width of cardboard |
100-950mm |
|
Length of cardboard |
100-950mm |
|
Distance of each groove |
0-830mm |
|
Thickness of cardboard |
0.5-4mm |
|
Grooving degree |
80-140°adjustable |
|
Total cutting knives |
9 pcs |
|
Production speed |
10-35m/min |
|
Dimensions |
1780 x 1360 x 1650mm |
|
Weight |
1480kg |
