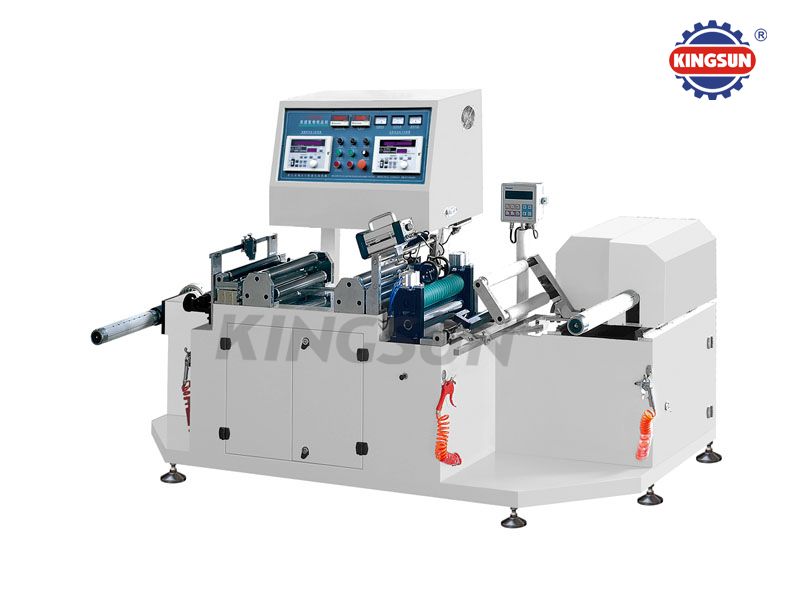

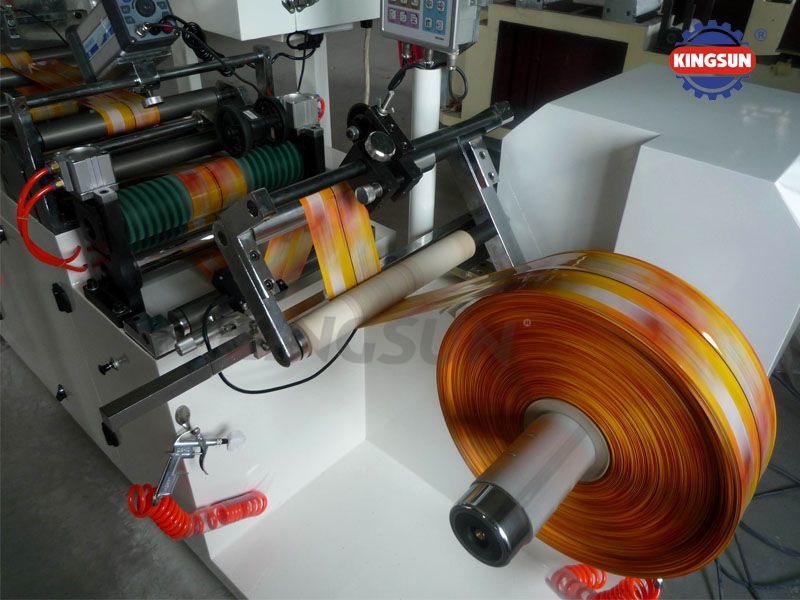

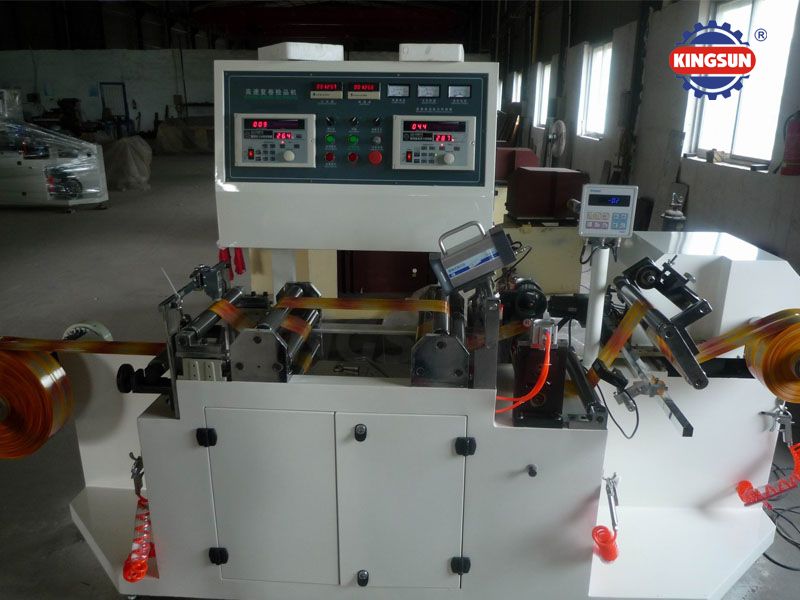

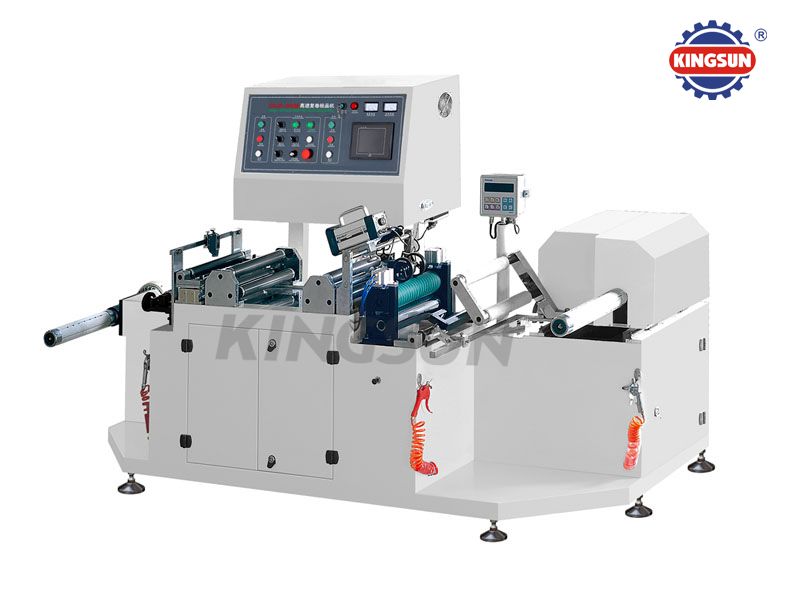

KJP-300 PVC shrink label doctoring machine

KJP-300 PVC shrink label doctoring machine is for inspect the printing quality and sealing quality of PVC sleeve label. Also this machine is for rewinding the PVC shrink label roll into smooth edge side surface.

KJP-300 PVC shrink label doctoring machine Old Model GSJP-300

Introduction of inspecting machine:

KJP-300 PVC shrink label doctoring machine is for inspect the printing quality and sealing quality of PVC sleeve label. Also this machine is for rewinding the PVC shrink label roll into smooth edge side surface.

Technical specifications:

Model

KJP-300C

KJP-300A

MAX. unwind diameter

700mm

700mm

MAX. rewind diameter

500mm

500mm

MAX. width of inspection

300mm

300mm

MAX. speed of inspection

250m/min

300m/min

Machine power

3.5kw

3.5kw

Machine weight

870kg

870kg

Overall Dimensions

2700×1100×1650mm

2700×1100×1650mm

Features

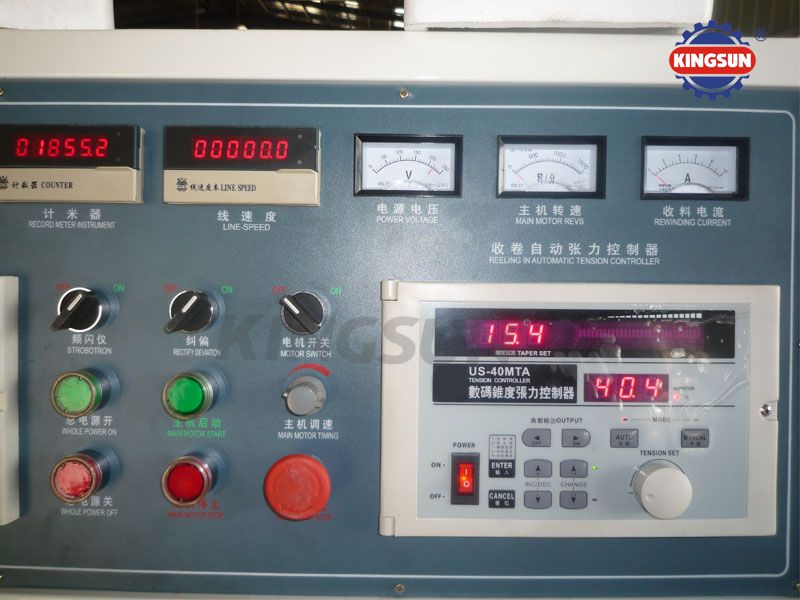

Man-machine interface

Inverter speed adjust

PLC control

China made inverter

Yaskawa double vector inverter

Auto-tension for unwind and rewind

Auto-tension for unwind and rewind

Ultrasonic auto-web guide

Ultrasonic auto-web guide

Automatic meter counting

Automatic meter counting
