KJ-800D Model Take Away Food Box Making Machine

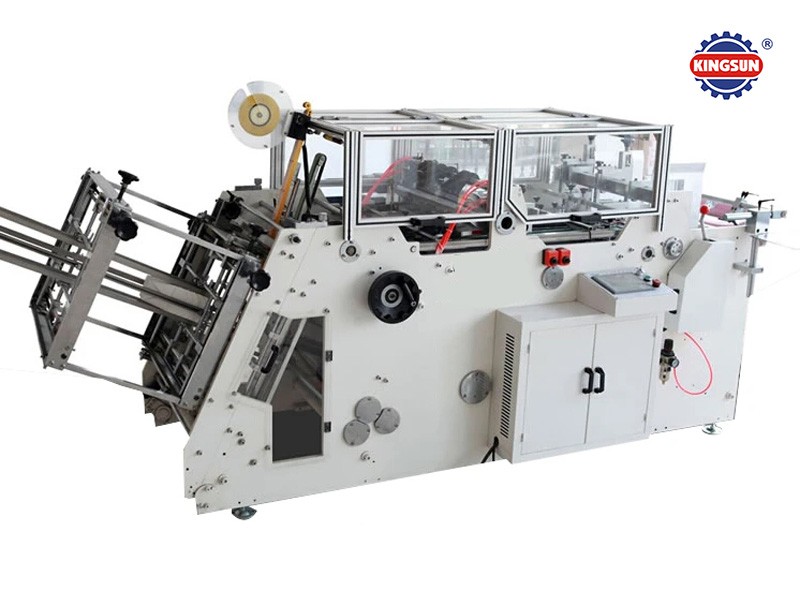

Automatic take away fast food box making machine, or hamburger box making machine is molding equipment specialized in producing various paper products, which can produce hamburger box, square box, potato chipper, food box(portable outside),and other boxes made by paperboard and corrugated paper.

KJ-800D Model Take Away Food Box Making Machine | Hamburger Box Making Machine

Introduction:

Automatic take away food box making machine, or hamburger box making machine is molding equipment specialized in producing various paper products, which can produce hamburger box, square box, potato chipper, food box(portable outside),and other boxes made by paperboard and corrugated paper.

Working principle:

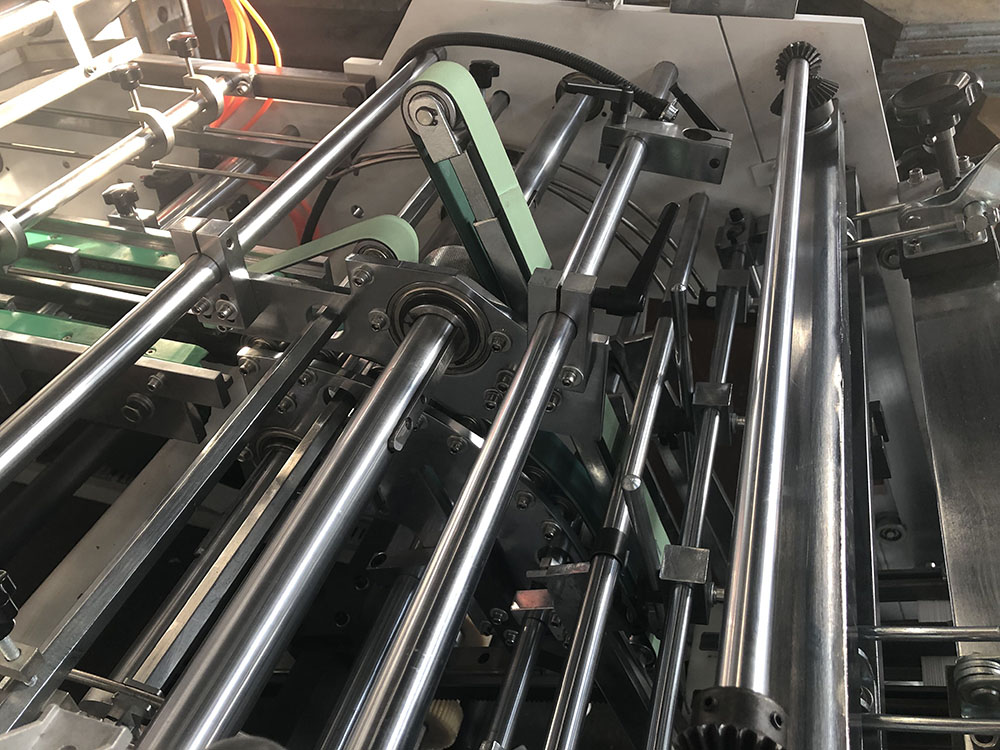

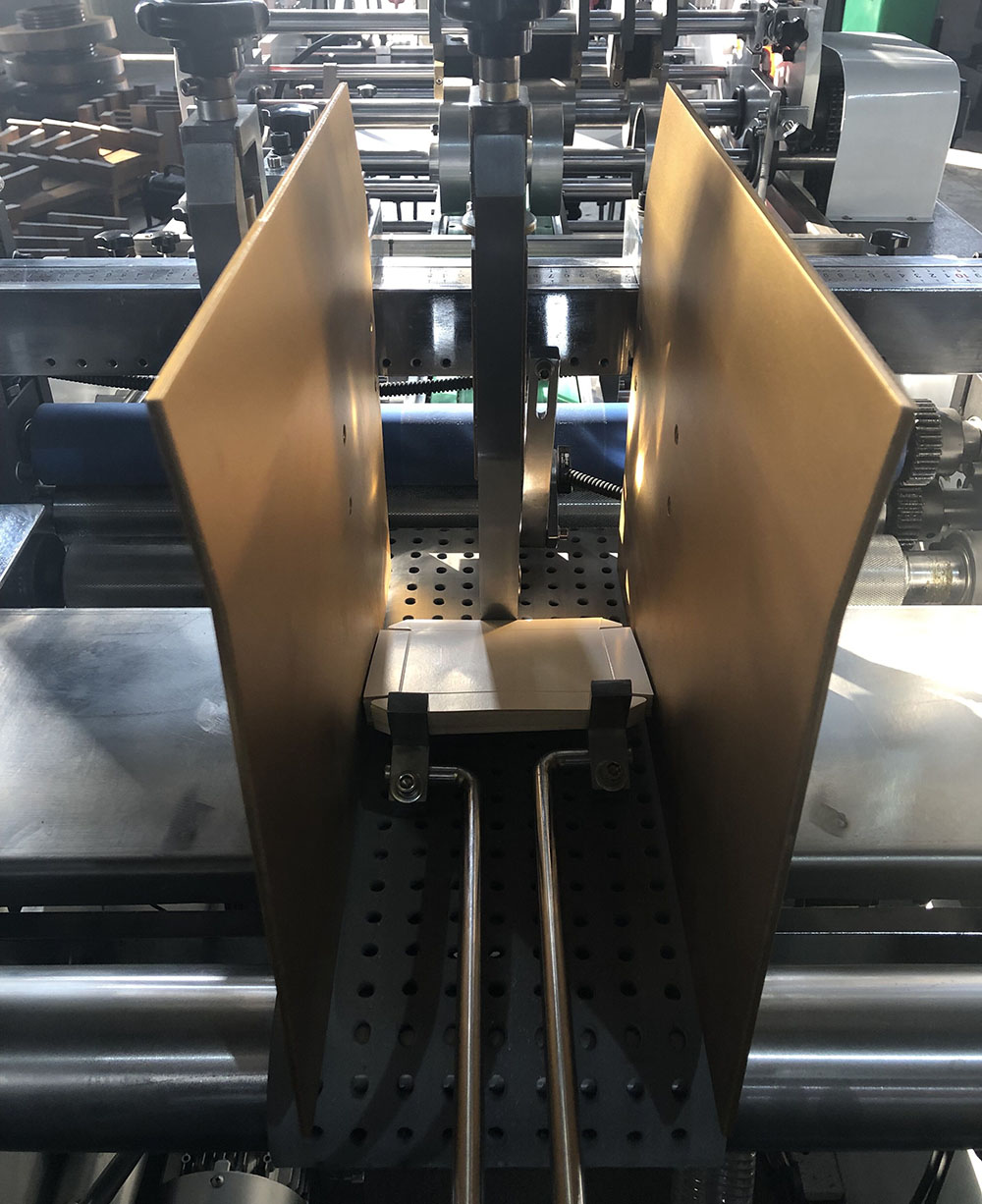

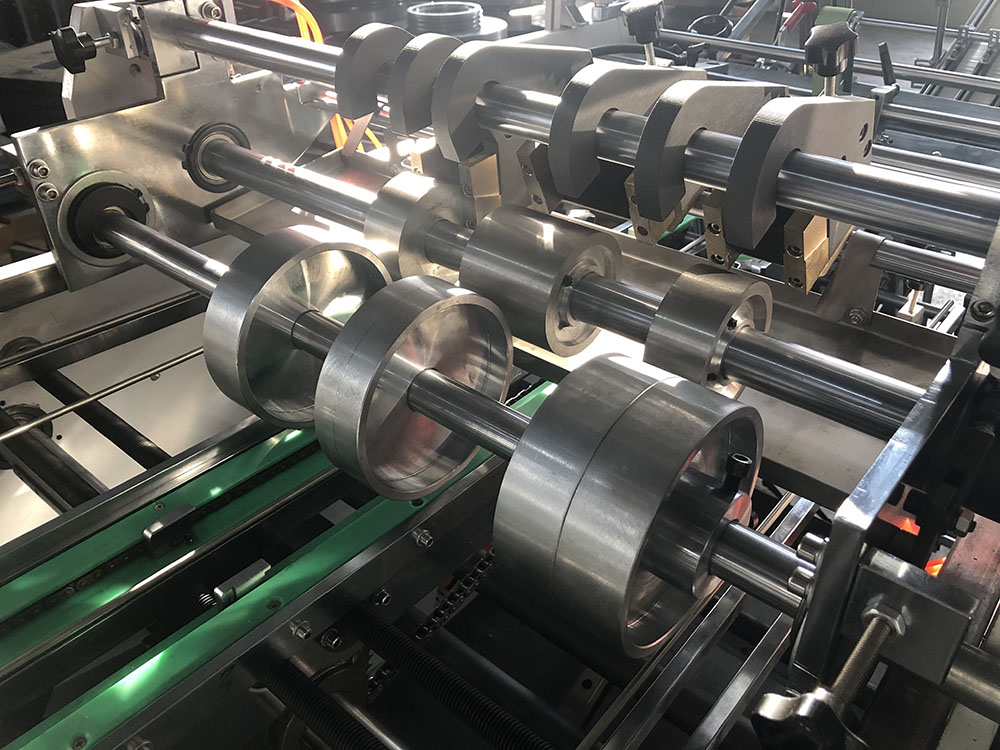

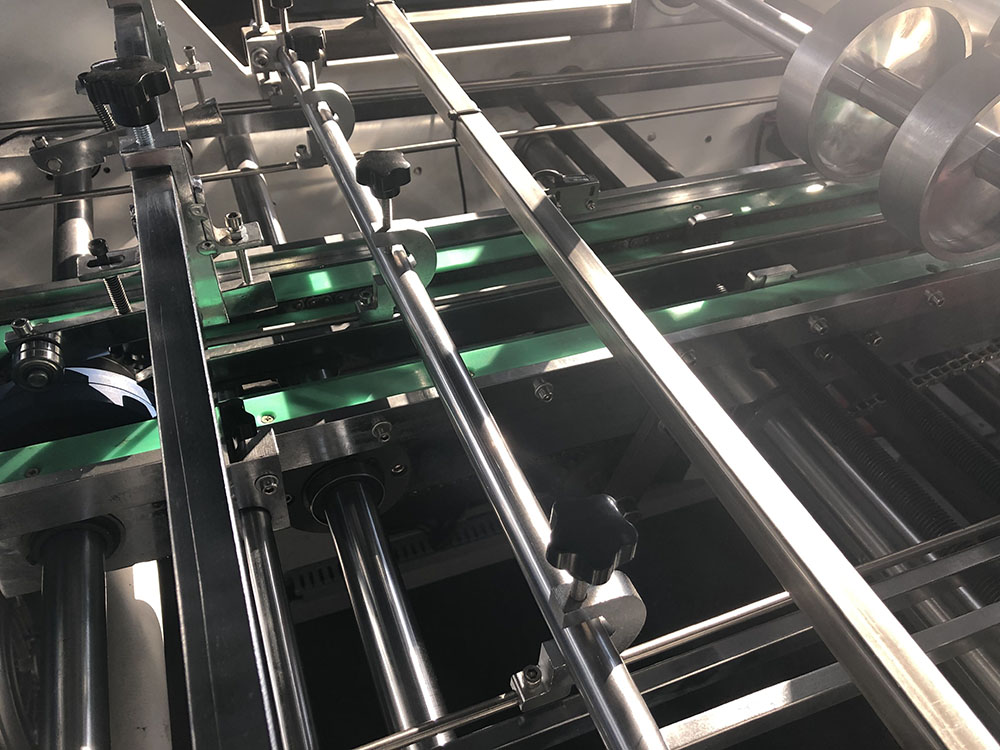

The printed and die-cut cardboard feed from paper feeder, brought out to the conveying chain, and then sent to die, in the process card paper is coated with a water-based glue, glue position can be adjusted, the amount of coating glue can be adjusted in production without stopping, cardboard film coating adhesive to the collector after forming, automatic stacking and counting, and according to a presetting number of stack automatic mark without stopping the machine.

Main Features:

1. The machine is with stable quality, high efficiency, speed up to 180PCS/MIN

2. Multi-functional :In the same machine, only need to change a touch can create different specifications of the boxes, boxes, hamburger boxes, boat shaped box, food packing box, carton products such as chicken

3. The machine uses the water-based glue device, can achieve high efficiency, high accuracyWater based adhesive is a water-soluble adhesive glue for food grade (high security).

4. This machine is mostly used high quality seal bearing, long service life, and good stability.

5. The machine uses the PLC intelligent control system, in the paper, no paper state automatic shutdown.

6. The main mold with pine material, the replacement of the mold with high efficiency.

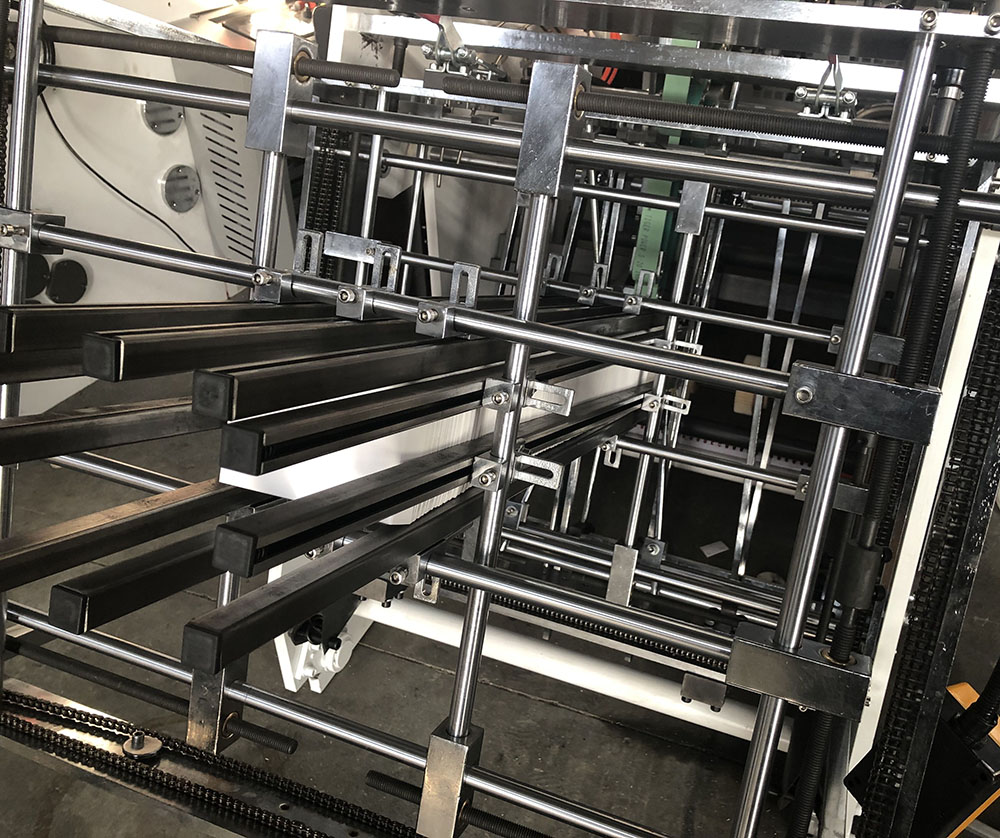

7. Can automatically collect deposits, inventory of finished goods.

8. Synchronous belt drives all adopt high quality, make the machine running almost no error.

Specification:

Paper   Size

60*100-480*580mm

Raw Material

Whiteboard and other similar PE coated paper (200-600g/m2)

Rated Productivity

 80-160 pcs/minute

Unfold paper width

 max 600mm

Total Power

2.2KW

Total Weight

2000KG

Package Size

3000*1200*1600mm

Please write more details of your specific requirement, so our sales team can provide you right machine you need.
