KCJ-600 Model automatic two-ways grooving machine

This model grooving machine is specially designed for horizontal and vertical two-ways grooving the paper board at one process, fit for V grooving of grey board and MDF board

KCJ-600 Model automatic two-ways grooving machine

This model grooving machine is specially designed for horizontal and vertical two-ways grooving the paper board at one process, fit for V grooving of grey board and MDF board

Grooving machine Features:

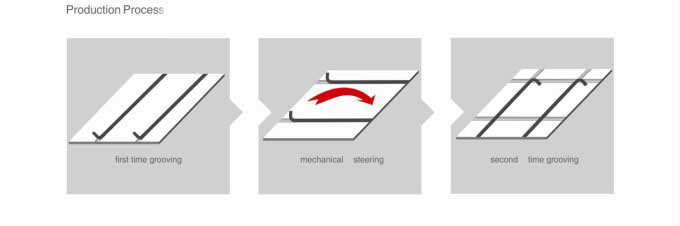

1. Fast speed auto-feeding board

2. (First time grooving) press wheel automatic correct position

3. Mechanical automatic turn direction

4. (Second time grooving) press wheel automatic correct position

5. Automatic dust chip removal

6. Automatic final product collection and delivery

7. Greatly save time and improve the precision for rigid box making

Grooving machine specifications:

Feeding width

150-600 mm

Board thickness

1.5-3.0mm

Speed

110pcs/min

Error

±0.15 mm

Groove at same time

9 pieces

Groove angle

80 °- 140°

Machine power

5Kw/380V

Out dimensions (L X W X H)

4700 x 1800 x 1650mm

Machine weight

2800Kg

Welcome to our website! Please feel free to send us your inquiry in detail, we will reply you as soon as possible.
