GDHH Pre-folding and crash-lock automatic folder gluers

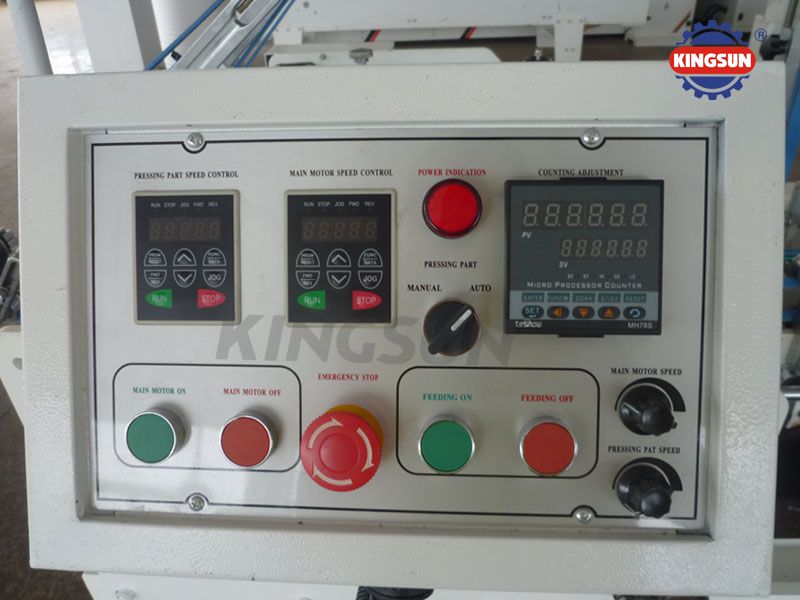

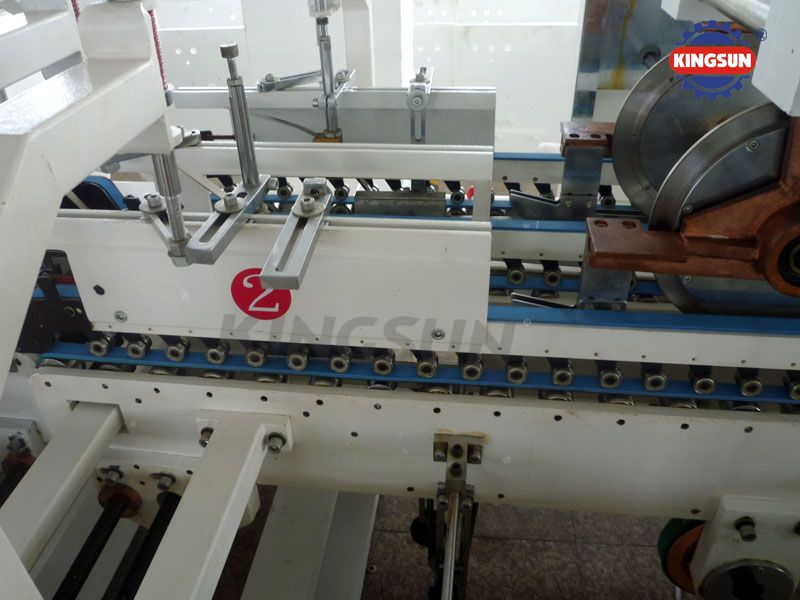

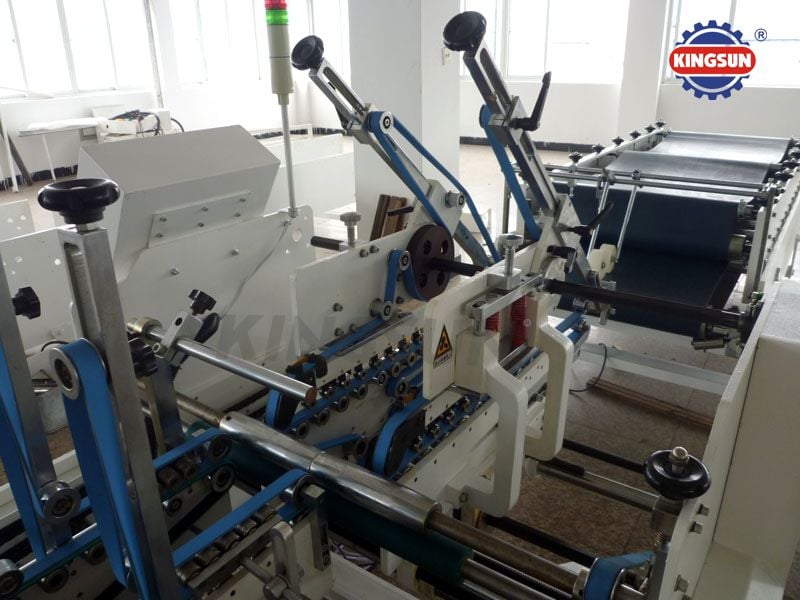

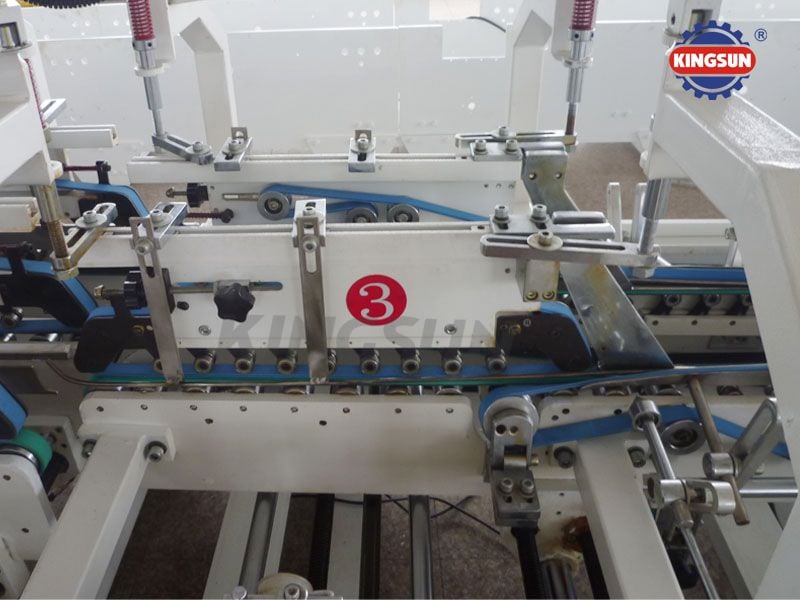

GDHH series folder gluer is kind of four fold and bottom lock box equipment. In the pre-fold part, 1st fold and 3rd fold can be folded as 180° or 150°, 2nd fold and 4th fold can be formed as 180°. Imported electrical parts and accessories,there is frequency converter in the front and at the backside of machine for the separate operate, it is convenient for paper feeding.

GDHH Pre-folding and crash-lock automatic folder gluers

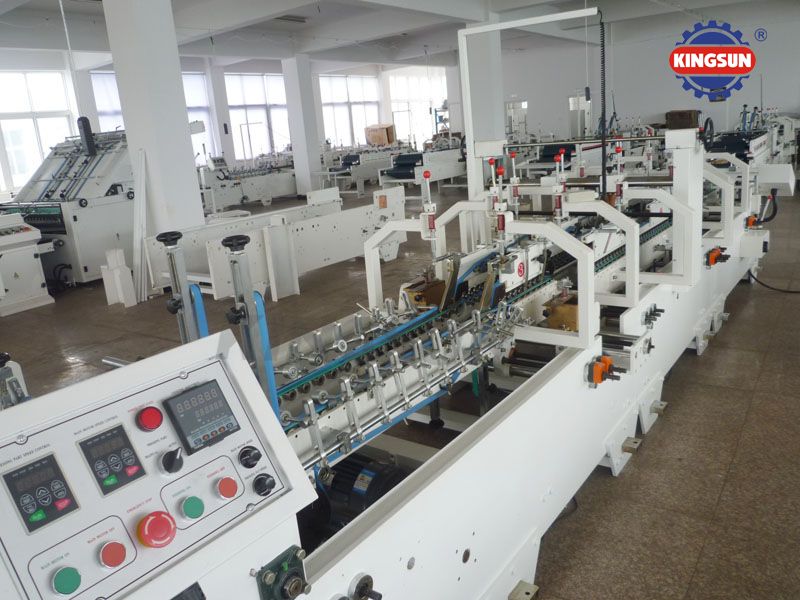

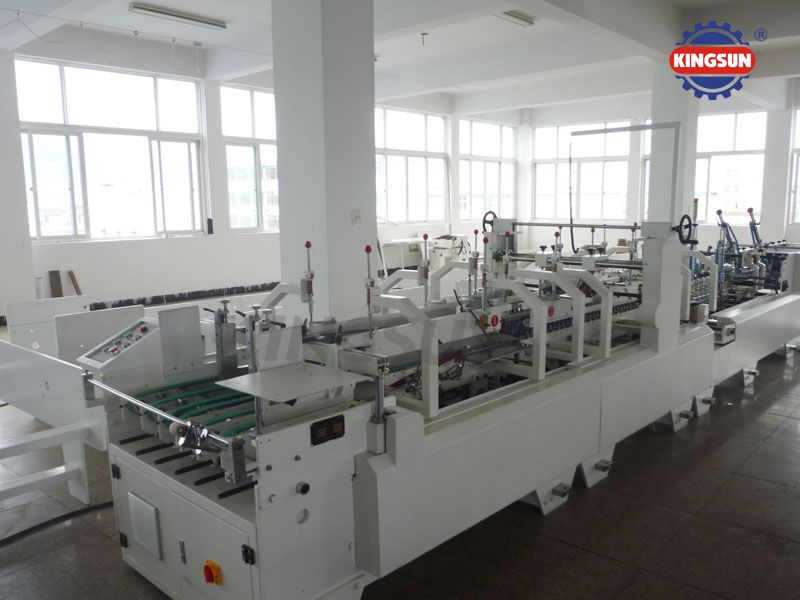

GDHH series automatic folder gluers are kind of four fold and bottom lock carton box making equipment for cartons. In the pre-fold part, 1st fold and 3rd fold can be folded as 180° or 150°, 2nd fold and 4th fold can be formed as 180°. Imported electrical parts and accessories,there is frequency converter in the front and at the backside of machine for the separate operate, it is convenient for paper feeding. With features of high speed and reasonable structure, it is easy for operation and it is widely used for making pharmaceutical box, cosmetic box, daily use goods packing box, etc.

 folder gluer drawing

Technical specifications of GDHH series :

Model

GDHH800

GDHH1200

Paper thickness

220-800g/m2 (depends on paper quality)

220-800g/m2

Paper feeding

Automatic

Automatic

Fold type

1 and 3 line 90º, 2 and 4 line 180º

1 and 3 line 90º, 2 and 4 line 180º

Gluing mode

One side/two side/bottom glue

One side/two side/bottom glue

Working speed

0-220m/min

0-220m/min

Power

8KW/380V

8KW/380V

Dimensions

9200X1100X1300mm

9200X1300X1300mm



Box type

Model

A Max

A Min

B Max

B Min

C Min

D Min

F Min

No crash-lock

GDHH-800

700

110

620

110

8

70

51

GDHH-1200

700

110

840

110

8

70

51

With crash-lock

GDHH-800

700

160

520

180

9

90

85

GDHH-1200

700

160

800

180

9

90

85

Kingsun folder gluers with its good reputation for reliable quality and easy for operating, as long as you provide us the carton box sizes need to make , we will suggest our best model for you, even if your boxes are very special type, our engineers also make full efforts to help you to make special device so can well fit your actual products. Don't hesitate to contact Kingsun company now!
