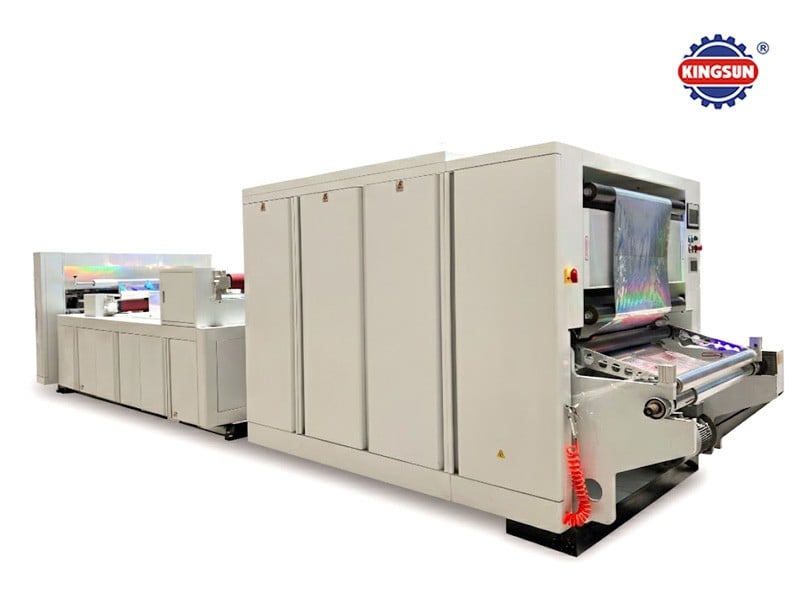

De-metalizing Machine (demetalizing machine or metallized film partly washing machine)

Kingsun series de-metallizing machine applies to demetallizing PET film, PVC film, flexible packaging, laser hologram film, transfer film, label stickers, logos, anti-counterfeit strip partially transparent material, the shape and size of the transparent window position can be arbitrarily selected.

De-metalizing Machines (demetalizing machine or metallized film partly washing machine)

Features:

Kingsun series de-metallizing machine applies to demetallizing PET film, PVC film, flexible packaging, laser hologram film, transfer film, label stickers, logos, anti-counterfeit strip partially transparent material, the shape and size of the transparent window position can be arbitrarily selected.After de-metalizing the washed away part window is clear and transparent, then laminating with other materials, we can see though the inside package, it will be greatly improved your flexible packaging to a higher level.

The demetalizing machines main technical characteristics:

The whole machine adopts PLC control, imported key components,specifically features following three aspects:

1. The chemical liquid is environmental type, non-toxic, odorless, non-pollution, long kept liquid also can be reused.

2. The chemical liquid solution consumes very low cost.

3. The machine designs for effectively prevent the film surface drawing scrape lines, wrinkling, shrinkage, with fast drying capacity, good rewinding design. There are cleaning quality observation screen, the partially transparent window can return the true nature color of the film.

4. The operation of this demetalizing machine is quite easy and reliable function.We provide the recipe of chemicals, which easily found in very countries in the world.We also tailor made the machine size according to your requirements, so just let us know the real width of film you need to demetalizing, we design it to satisfy your production.

Main specifications:

Model

1200

800

Working width

1100mm

700mm

Working speed

60-100m/min

60-100m/min

Unwinding and rewinding diameter

700mm

700mm

Motor power

1.5KW

1.5KW

Water pressure

≥0.2Mpa

≥0.2Mpa

Total power

20KW

20KW

Dimensions

720 x 180 x 185cm

720 x 160 x 185cm

Weight

3100kgs

2800kgs
