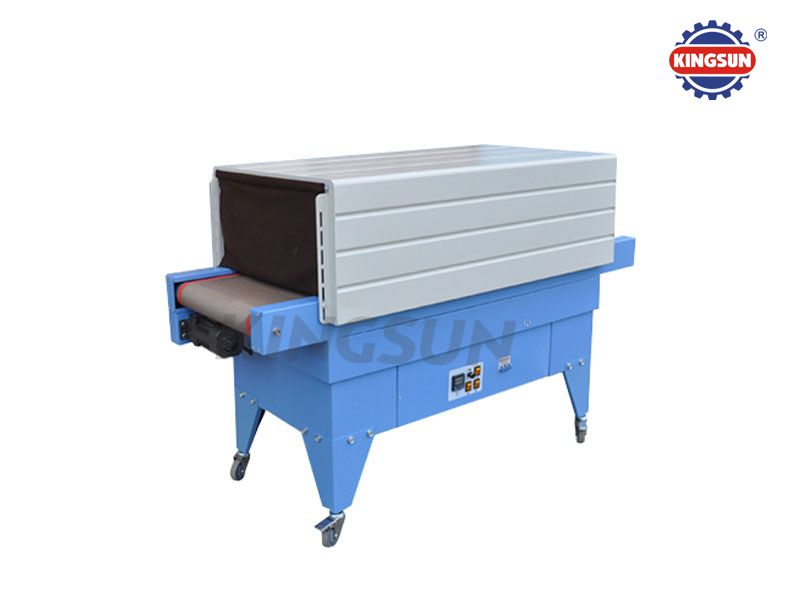

BS-A Series Shrink Packing Machine
Product Feature:
BS-A series shrink packing machine adopt hot-wind & down-cyclone structure, with digital temperature control and AC speed adjust, and it can equip either mesh type conveyor or roller conveyor. Tunnel height and two sides shutter can be adjusted, which is suitable for PVC, PP or POF film material.
Technical Specification:
|
Model |
BS4525A |
BS4535LA |
BS6535LA |
|
Voltage(V/Hz) |
220/50(Single phase) |
380/50(3 phases) |
|
|
Power (kw) |
6.5 |
9.6 |
12.8 |
|
Loading Weight (kg) |
10 |
30 |
|
|
Conveyor Speed (m/min) |
0~10 |
||
|
Tunnel Size (L×W×H)(mm) |
900×450×(50~250) |
1200×450×(50~350) |
1200×650×(50~350) |
|
Dimension (L×W×H)(mm) |
1200×650×1240 |
1200×650×1340 |
1200×850×1340 |
|
Net Weight (kg) |
90 |
120 |
150 |
