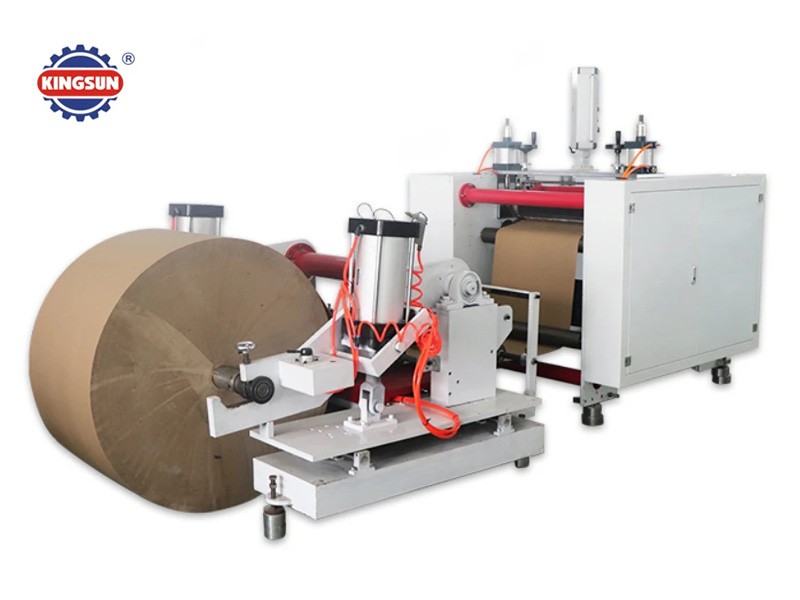

520 Model Honeycomb Kraft Paper Making Machine

This honeycomb kraft paper making machine is specially designed for making honeycomb paper, it can cut kraft paper into a horizontal point break line by rolling and cutting, and collect it into a roll after surface rewinding, the roll after rewinding can be used for express buffer packaging, it also can be used for the middle buffer layer of the package. It is completed from unwinding to rewinding in one process time.
Product Details
Main specifications
Online Inquiry
Video
Related Products

Product Details

Honeycomb paper making machine introduction:

This honeycomb paper machine is specially designed for making honeycomb paper, it can die cut kraft paper into a horizontal point break line by rolling and cutting, and collect it into a roll after surface rewinding, the roll after rewinding can be used for express buffer packaging, it also can be used for the middle buffer layer of the package. It is completed from unwinding to rewinding in one process time.

Usage of the honeycomb kraft paper products:

Honeycomb wrap paper can be an environmentally friendly and economical alternative cpmpare to plastic bubble films for cushioning packaging after pulling apart. It is easy to stretch, soft, elastic and dissipates heat. It can give cushion protection to the packaged items and make its surface scratch-free. The honeycomb paper produced by this machine can be used to pack fruits, flowers, ceramics, glass, and other easy damaged items.

In additional, the honeycomb paper roll is same space and easy for transportation, Also the paper is easy to recycling and lost cost.

The machine cane be customized to your needs!

Main specifications



Paper roll width

500mm

Max unwind diameter

1200mm

Max rewind diameter

250mm

Paper core size

76mm,38mm

Machine speed

120m/min

Tension setting range

0-100N.m

Total power of the whole machine

8Kw

Machine weight

1100kg

Machine size(L X W X H)

2900 X 1900 X 1500mm
