What is High Speed Paper Roll to Sheet Cutting Machine?
Introduction: What is a High-Speed Paper Roll to sheet Cutting Machine?
Quick Answer: A paper roll to sheet cutting machine is a type of fully automatic industrial equipment used to cut jumbo roll paper into sheets of preset length and width, and then deliver them into piles for subsequent processing.
Details: A high-speed paper roll to sheet cutting machine is specialized industrial equipment designed to efficiently convert large jumbo rolls of paper into precisely cut sheets. Capable of processing paper with weights ranging from 50 to 650 gsm, this machine serves as a critical intermediate step in paper production and printing workflows. The sheets produced can either be sent directly to offset printing presses or further trimmed on a guillotine cutter as needed. Recognized as one of the most efficient systems for web paper converting, it is also commonly referred to as a high-speed roll-to-sheet cutter or paper sheeter.
Unlike slitter rewinders - which only slit rolls into narrower widths - or standard guillotine cutters used for secondary trimming, this machine integrates unwinding, tension control, sheet cutting, and stacking into one continuous automated process. It is widely utilized across the paper manufacturing, printing, packaging, and paper trading industries, where high throughput, accuracy, and material efficiency are essential.
Key Technical Specifications
- Models Available:1100 / 1500 / 1700 / 1900
- Max Cutting Speed:Up to 400 cuts per minute
- Max Line Speed:Up to 320 meters per minute
- Cutting Length Range:450–1450 mm
- Max Stack Height:1300 mm (models 1100/1500/1700), 1600 mm (model 1900)
- Max Roll Diameter:1800 mm (approximately 71 inches)
- Max Roll Width:1100 mm, 1500 mm (approx. 55 inches), 1700 mm, 1900 mm
- Machine Weight:Ranges from 13,000 kg to 16,000 kg depending on model.
Type of cutting blade
For the high-speed paper roll to sheet cutting machine usually adopts the rotary knife, one is upside rotary knife and downside blade fixed, the other is twin rotary blade for sheeting.

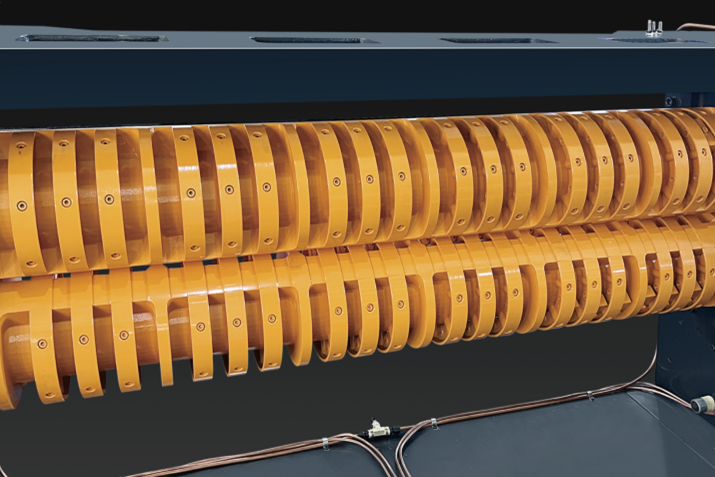

Twin Rotary Blade for Premium Quality
The twin rotary cutting blade, which can cut the paper with perfect cutting edge, less dust and fast speed, it can delivery to offset printing press directly, with higher quality and save the second time cut, but this is mainly fit for the thicker paper, for example over 150gsm at least.

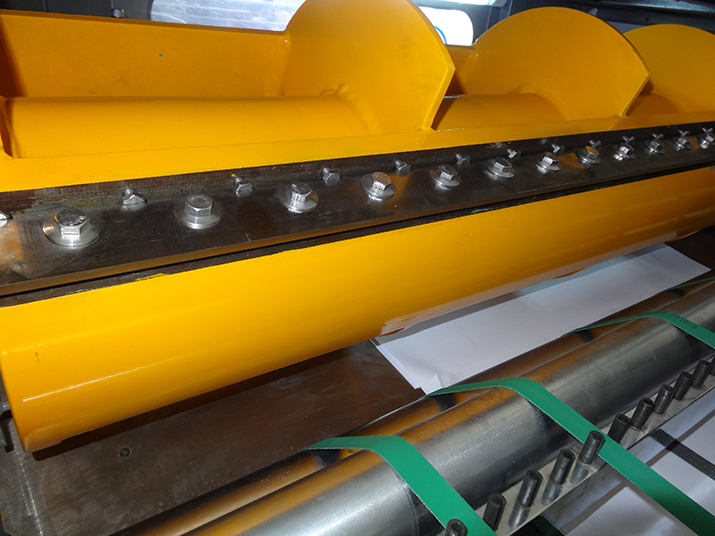

Single Rotary Blade for Thin Paper Converting
If your paper less them 150gsm, it is better to choose this one, which is upside blade rotary cut blade, and downside knife fixed, the machine cost is less and good performance for the thin paper converting. But if this machine for thicker cardboard, of course it can cut without any problem, only the cutting edge maybe leave some small hair like dust, so if you go for direct offset printing, you need to use your guillotine cutter to trim it, so keep the cutting edge clean and smooth.

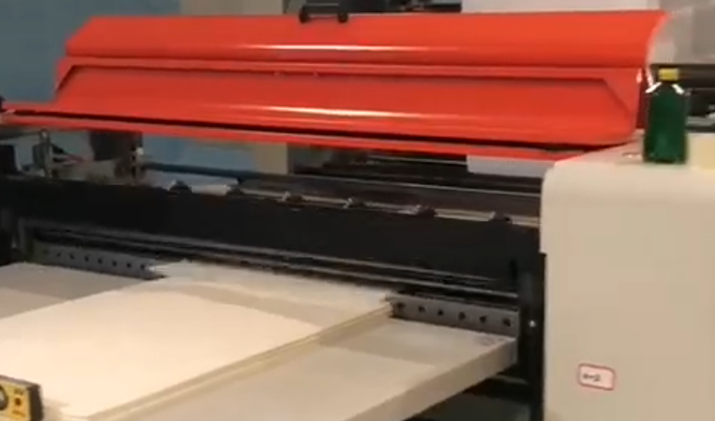

Guillotine-Type Sheeters for Small to Medium Enterprises
There are also other types of up-and-down cut sheeters, such as the guillotine paper sheeter. Its blade operates like a pair of scissors. Due to speed limitations, it typically only reaches 100-150 cuts per minute, so it is not considered high-speed equipment.
However, this type is well-suited for cutting printed paper rolls into sheets and is commonly used within printing houses. Because of its lower cost and smaller footprint, it is more than capable of handling most paper sheeting converting tasks. As a result, it remains a popular choice for small to medium-sized packaging and printing companies.
Performance and Advantages
Operating at speeds of up to 400 sheets cutting per minute and web speeds reaching 320 meters per minute, high-speed paper sheeters are engineered for both high productivity and exceptional precision. They deliver consistently clean cuts with minimal paper dust, produce neatly stacked output, and allow for quick adjustment of sheet dimensions - significantly reducing paper waste and optimizing material usage. These advantages have led to growing demand across various
