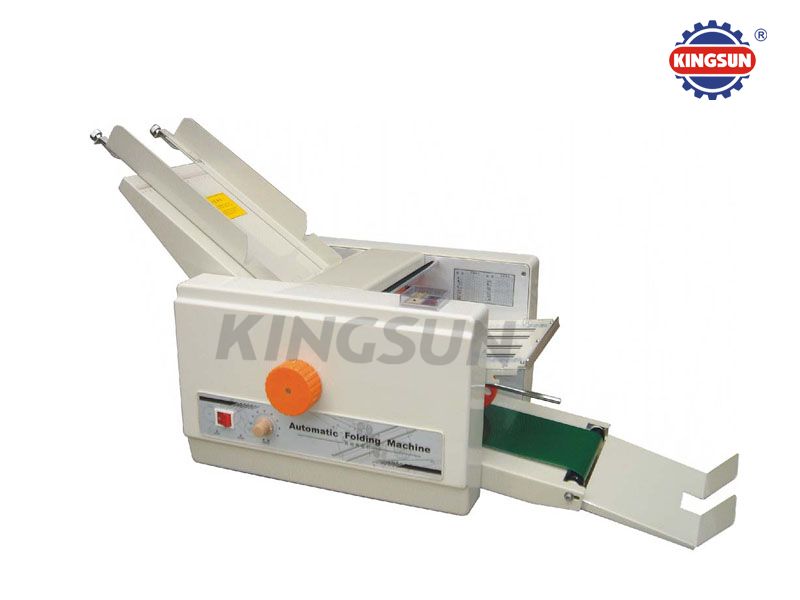

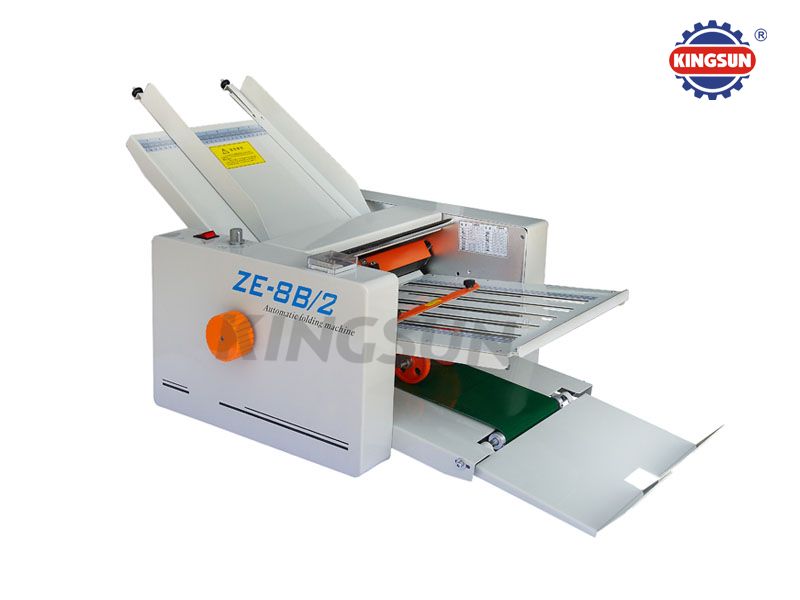

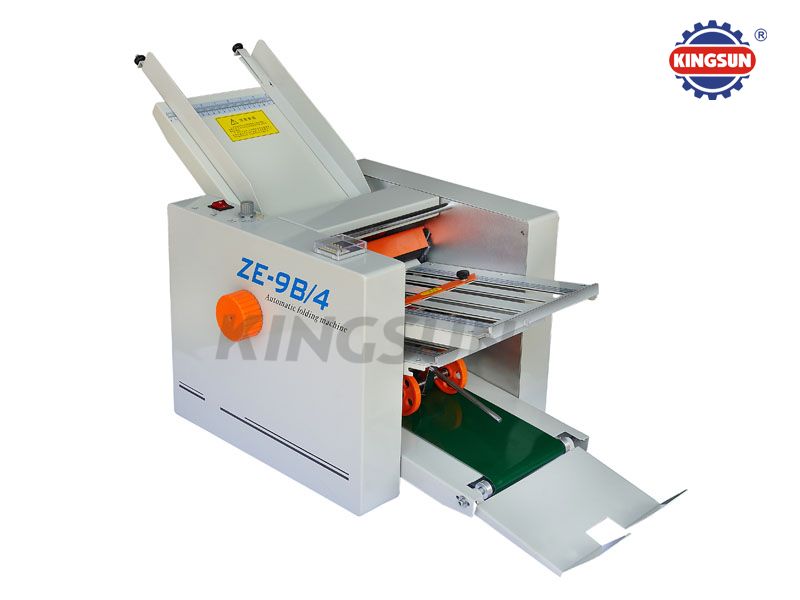

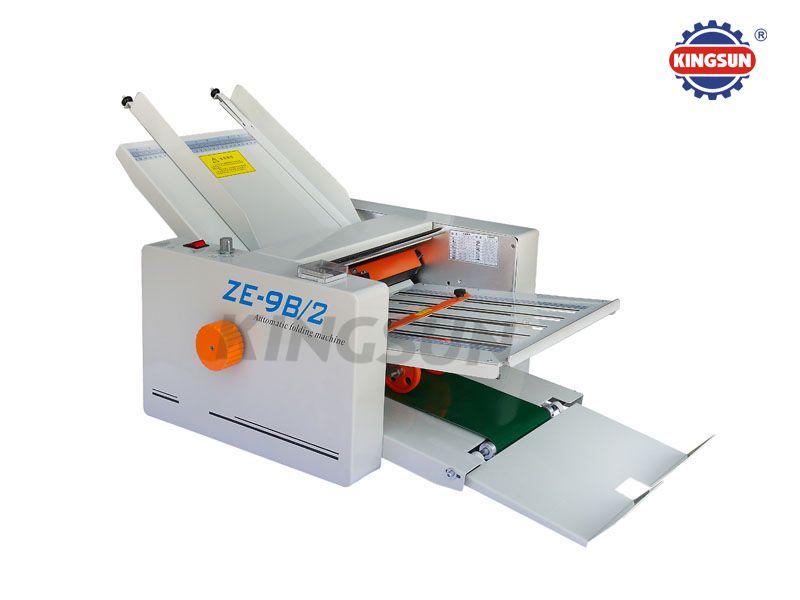

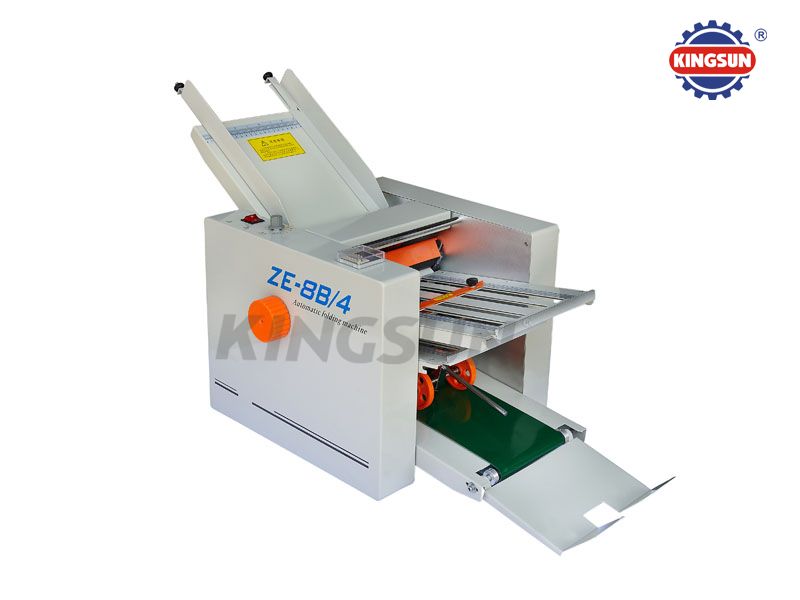

ZE Series Automatic Paper Folding Machine

It is suitable for folding paper in different sizes and thicknesses .

ZE Series Automatic Paper Folding Machine

Product Feature:

It is suitable for folding paper in different sizes and thicknesses .It can be folded as the different styles on showing legend. This machine is characterized by easy operating, smoothly feeding, step-less speed adjusting and efficiency. It can be widely used in fast printing center, producing enterprise, government organizations and league, etc.

Folding types of model with two folding trays:

Folding types of model with four folding trays:

Technical Specification:

Model

ZE-8

ZE-8B/4

ZE-9

ZE-9B/4

Voltage(V/Hz)

AC 220/50 110/60


Power(W)

70


Folding Tray Number

2

4

2

4

Max. Paper Size(mm)

310×700

210×420

210×620

Min. Paper Size(mm)

50 ×70


Max. Paper  Thickness(g)

125


Min. Paper Thickness(g)

40


Max. Speed(m/min)

80


Dimension(L×W×H)(mm)

1050×525×505

1080×530×580

1020×425×525

1020×430×580

Net Weight (kg)

35

48

30

43.5

Please write more details of your specific requirement, so our sales team can provide you right machine you need.
