Semi-automatic saddle stitching machine

KINGSUN DQ404-02GD semi-automatic saddle stitching machine or saddle stitcher is suitable for stitch binding various kinds of thin brochures, pictorials, magazines, etc. It adopts frequency convertor control system, photo-electricity detecting, missing staple detecting and protecting, automatic counting and paper jammed stop functions.
Product Details
Main Specifications
Online Inquiry
Video
Related Products

Product Details

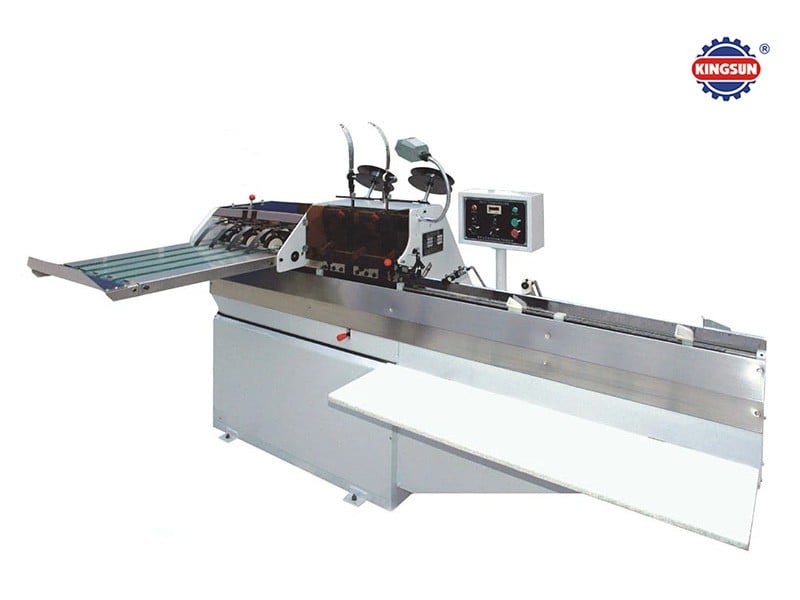

DQ404-02GD semi-automatic saddle stitching machine

KINGSUN DQ404-02GD semi-automatic saddle stitching machine or saddle stitcher is suitable for stitch binding various kinds of thin brochures, pictorials, magazines, etc. It adopts frequency convertor control system, photo-electricity detecting, missing staple detecting and protecting, automatic counting and paper jammed stop functions. After the sections being fed manually, the machine performs automatically to convey to stitch sections and then collect the finished books. The machine features: easy for operating, maintenance is very convenient, high reliability in function, high production efficiency etc.

Main Specifications

Max. Stitching size:

450x305mm

Min. Stitching size:

127x89mm

Stitching thickness:

0.2-4mm

Stitching speed:

30-90 times/min

Wire specification:

No. 25, 26

Motor power:

0.55kW

Machine weight:

420kg

Overall dimensions:

2200x1320x1350mm
