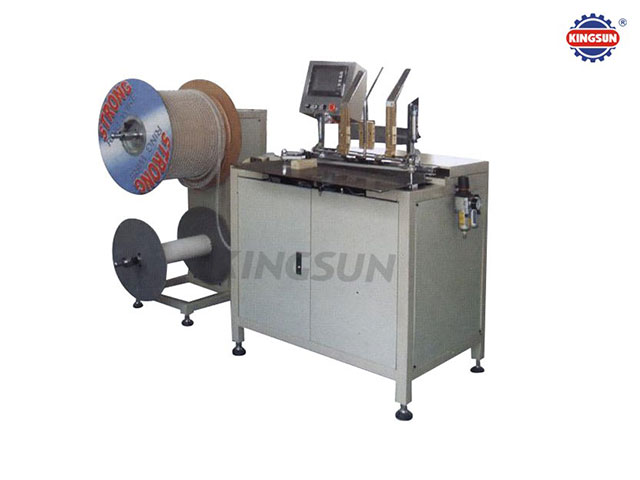

KB-520 Semi-automatic double spiral wire binding machine
The machine is widely used for binding of notebook, exercise book, calendar and so on. It has the functions of automatic cutting, skip binding (up to nine-step), spiraling and closing, so the workers can be saved and waste can be reduced. The machine uses imported step-servo motor, touch screen, electronic parts and pneumatic component.
Features of spiral binder:
1. Touch screen control, simple operation
2. Binding can be segmented (up to four).
3. Optional calendar hook device
Main specifications:
|
Paper width range |
75mm~520mm |
|
Max binding width |
507mm |
|
Types of double wire |
3:1 1/4"-9/16" 2:1 5/8"-3/4" |
|
Work speed |
25 books per minute |
|
Worktable dimension (width x depth) |
600mm×300mm |
|
Power |
220V/1PH/50Hz |
|
Air compressor(provide by customers) |
1.5KW |
|
Air pressure(bar) |
6~8 |
|
Main machine dimension(L X W X H) |
1200×780×1350mm |
|
Weight |
220kg |
