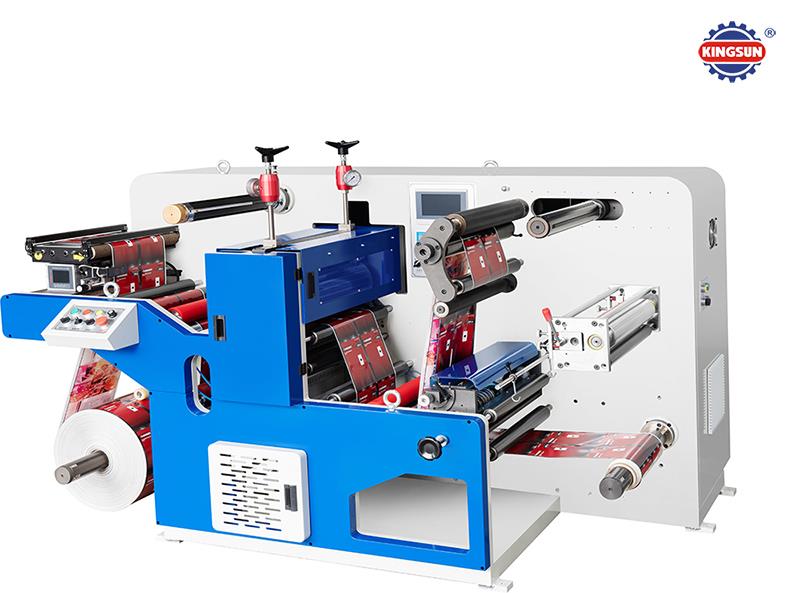

KSR-350G Rotary and Semi Rotary Label Die Cutting Machine

Kingsun intermittent semi-rotary die-cutting machine ensures stable tension, uses a magnetic cylinder for quick die changes, suits small to medium high-quality label runs, and offers a full-rotation mode for large volumes adhesive label converting.
Product Details
Main Specifications
Online Inquiry
Video
Related Products

Product Details

The KSR-350G model semi rotary and full rotary label die cutting machine consists of seven units: unwinding, web guiding, lamination, precision registration die-cutting, slitting, waste removal, and re-winding of finished products. Depending on product requirements, either continuous rotary die-cutting or intermittent semi-rotary die-cutting can be used. With intermittent die-cutting, consistent tension is maintained throughout the unwinding, rewinding, and web guiding systems (unlike traditional intermittent methods that require paper edge guide blocker), preventing the die-cut products web from shifting during feeding. Intermittent die-cutting utilizes magnetic cylinder that requires no replacement; die-cutting different products only requires changing the flexible die. It features high speed, high precision, simple operation, improved efficiency, and reduced costs. It is particularly suitable for label die-cutting with large, medium, and small batch sizes and high-quality requirements. For very large production runs, simply select “Full Rotation” on the touchscreen and install the corresponding magnetic die-cutting cylinders to achieve full-rotation die-cutting. This significantly improves label die-cutting quality and production efficiency, creating greater profit margins for businesses, making it the ideal die-cutting equipment essential for label converting in all kinds of printing houses.

Main Specifications

Max web width

350mm

Max unwinding diameter

700mm

Web guiding accuracy

±0.15mm

Maximum intermittent speed

60m/min

Total power

13.5KW

Power supply voltage

AC380V, 50Hz or custom made

Net weight

2200KG

Dimensions

2600 X 1200 X 1700mm
