KGUV-520A/650A Small UV Automatic Coating Machine

The machine adopts international advanced coating technology and combines the features of the national industry. It is used for digital printing paper.

KGUV-520A/650A Small UV Automatic Coating Machine

Features:

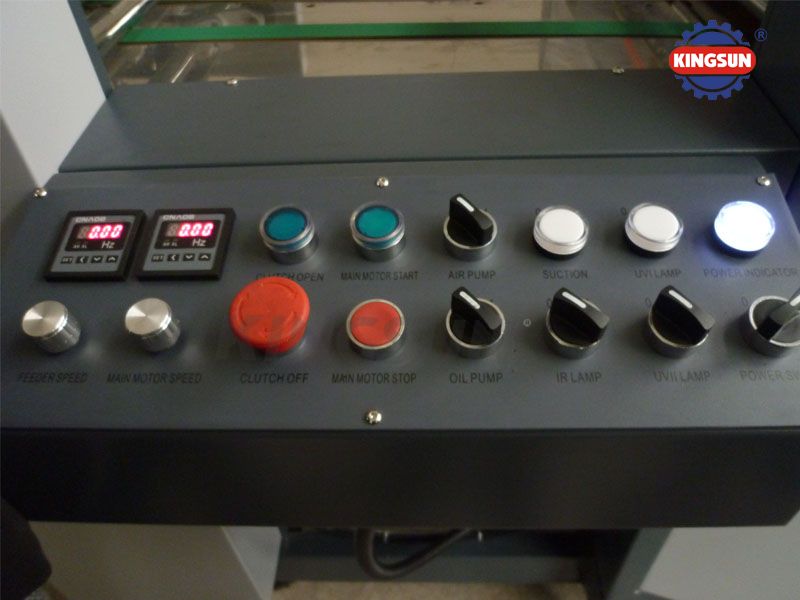

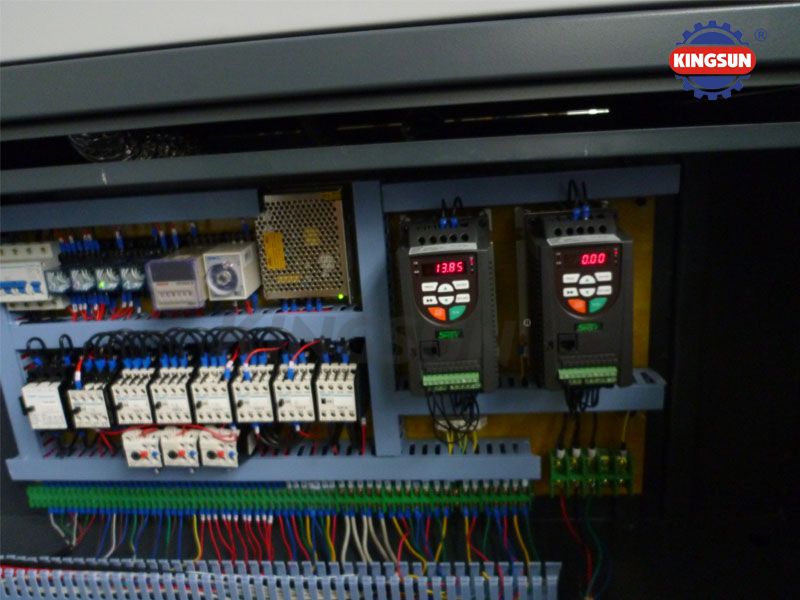

The machine adopts international advanced coating technology and combines the features of the national industry. It is used for digital printing paper. Through the machines coating, the paper can be water-proof, smooth surface and beautiful color. With PLC control system, 1 piece of UV light, 3 pieces of IR light and feeding system, the machines improve efficiency.

Technical specifications:

Model

KGUV-520A

KGUV-650A

Max. paper size

500×700mm

630×700mm

Min. paper size

297×210mm

297×210mm

Max. coating width

500mm

630mm

Paper thickness

80-157g/㎡(with air knife)

157-600g/㎡

80-157g/㎡(with air knife)

157-600g/㎡

Max. feeding speed

35m/min

35m/min

Total weight

1300KG

1500KG

Total power

9.5KW

9.5KW

Overall dimensions

3520×1030×1560

3520×1130×1560
