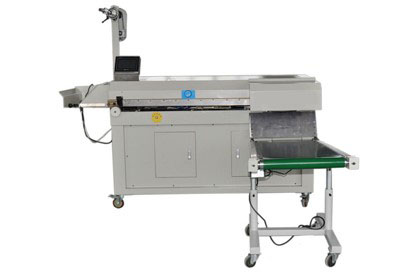

KB-380 Double Spiral Ring Binder
This binder product is widely used in notebook, album, calendar and other loose-leaf binding, one roll of double-spiral coil as binding material, In addition to pass through the book by manual operation, it can automatically complete the coil backward, length counting, cut off, send coil, press circle, book output and so on, Reduce the operational steps, reduce labor intensity. PLC centralized control, process parameter transformation can be done in the user interface page.
Features:
1. Centralized control by PLC, the default process parameters can be pre-setting
2. No need to replace the mold when change to different product
3. The machine can be applied to books which the front cover bigger than the inside pages
Technical Specifications:
|
Binding Paper Size |
80 x100mm - 380 x 530mm |
|
Binding Coil Size |
5 / 16 "- 1" |
|
Maximum operating speed |
1000 books/ h |
|
Power |
220V/50HZ |
|
Main motor power |
0.3KW |
|
Air consumption |
130L / min |
|
Weight |
400KG |
|
Machine dimensions (L X W X W) |
2200 x 980 x1740mm |
