This series semi-automatic industrial laminator machine are designed for manual feed economic type thermal film laminating, it also can acheive good laminating result. Fit for small-medium size printing house or packaging company to finish the laminating process.
kingsungroup
E-mail Us
PDF Download
Video Link

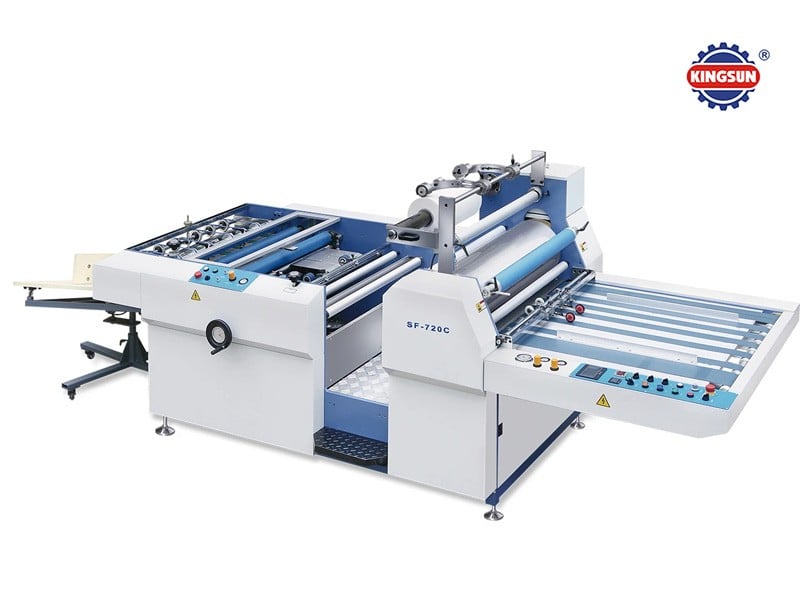

SF-720C/920C/1100C Semi-automatic Industrial Laminator Machine
This series semi-automatic industrial laminator is designed for manual feeding economic type thermal film laminating, it can also acheive good laminating result.
Manin features:

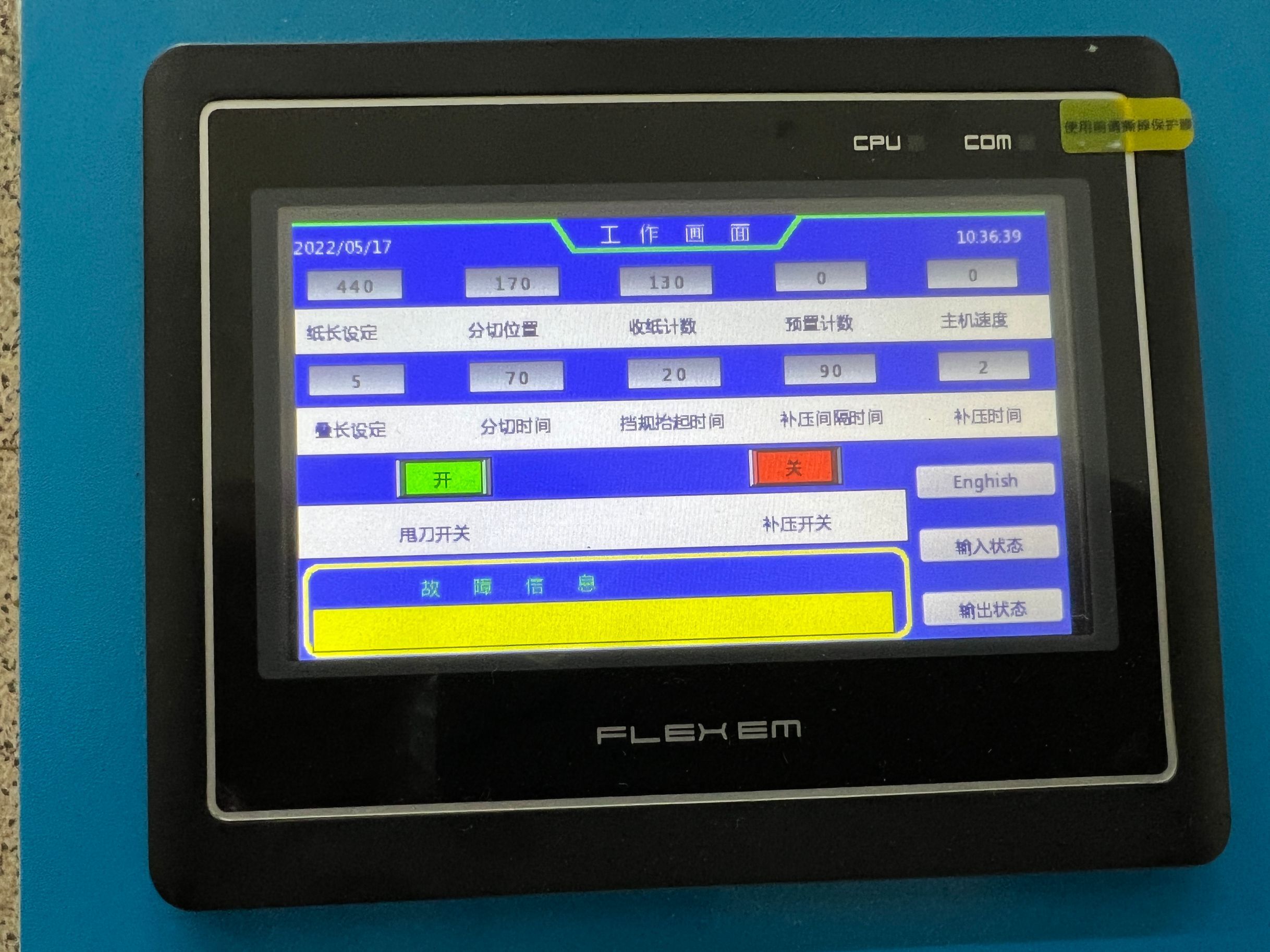

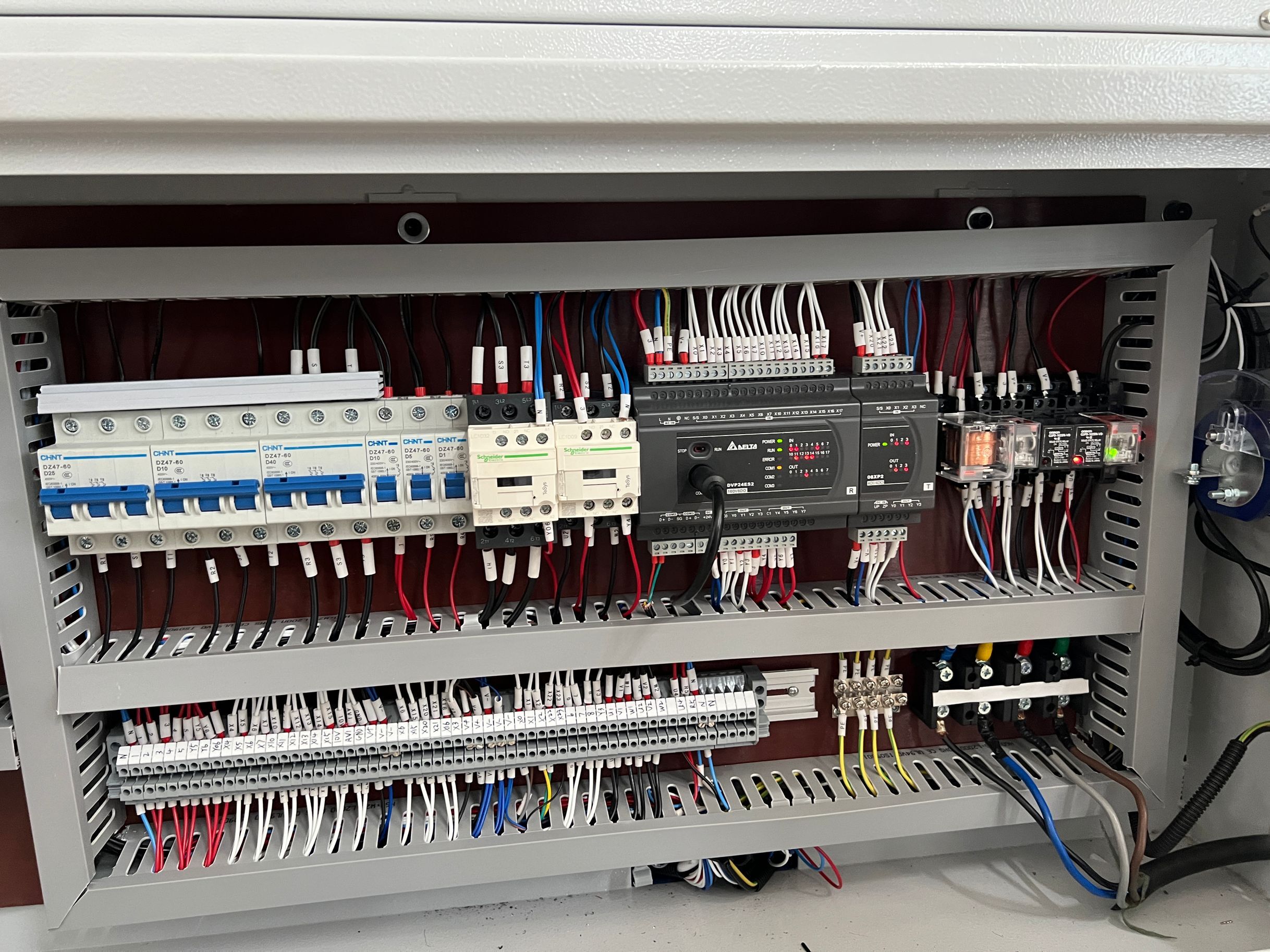

1. PLC system
makes the machine run stably and quietly.
2. Φ320 size of chromed heating roller is mounted with built-in oil
heating system which provides
balanced laminating temperature and owns excellent temperature persistence.

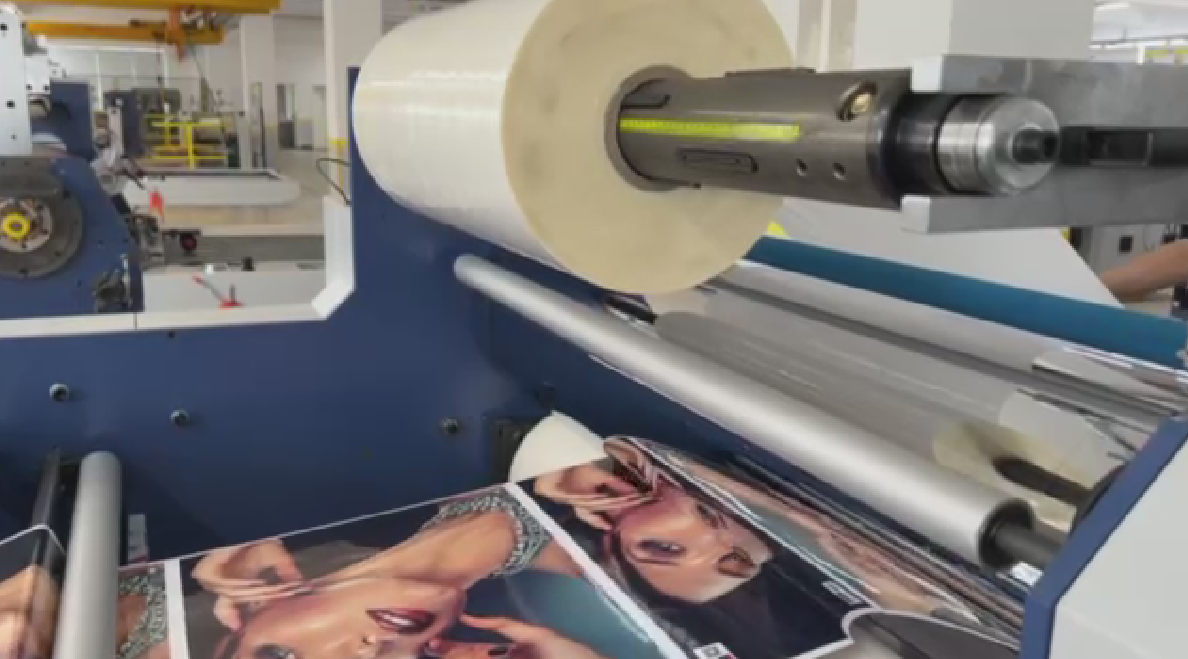

3. Pneumatic film unwinding system positions film roll more accurately, and
makes the loading and unloading of film roll and film unwinding tension much
more convenient.

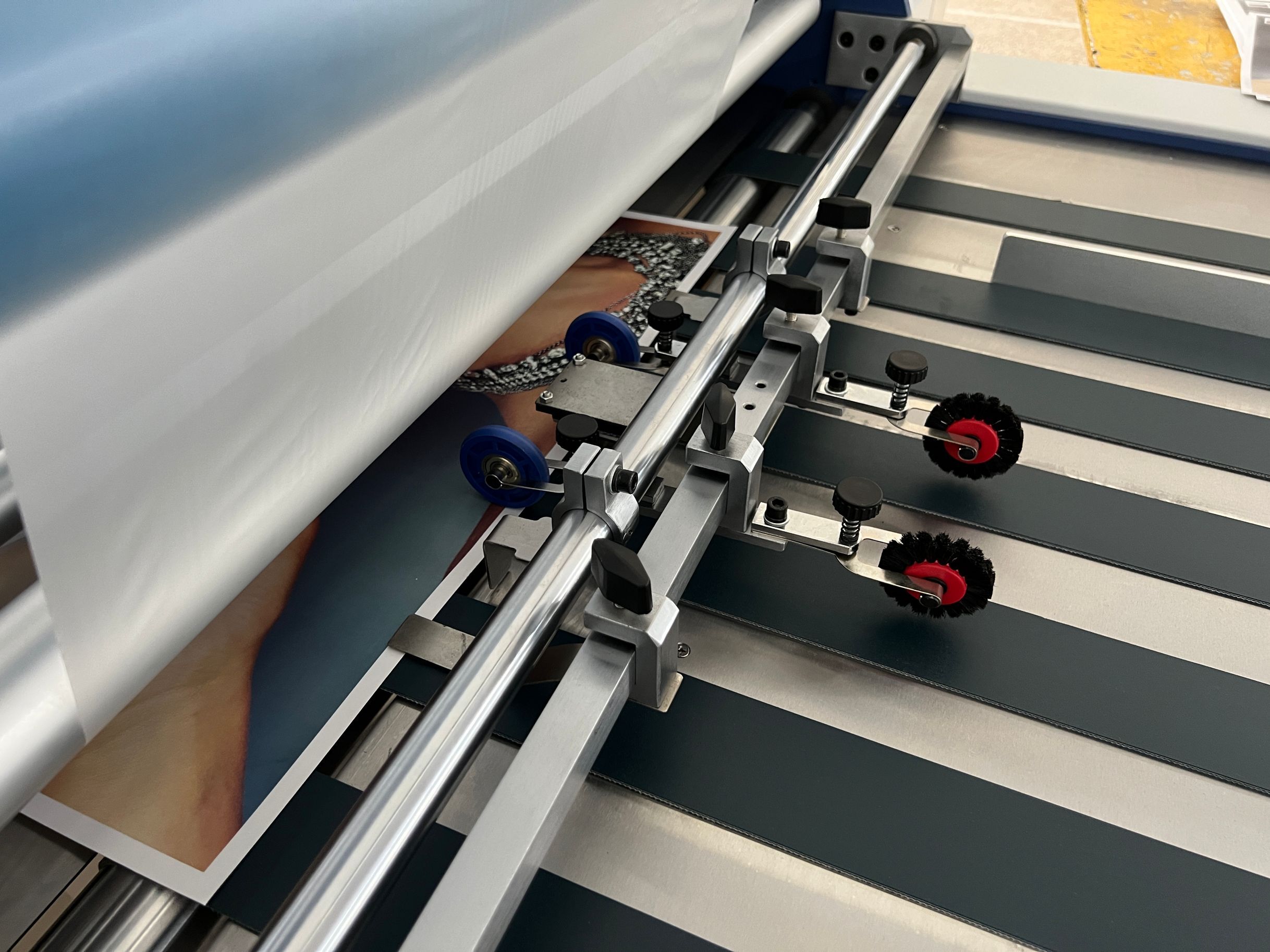

4. Double sets of serrated perforating wheels provide different choices for
different specifications of sheets and film.
5. Perfected traction adjusting system makes traction adjustment more convenient
and efficient.
6. Corrugating delivery system and vibrating receiving system ensure paper
collection more regular and convenient.
Main specifications:
|
Model |
SF-720C |
SF-920C |
SF-1100C |
|
Max Paper Size |
720mm |
920mm |
1100mm |
|
Paper Thickness |
100-500g/m2 |
100-500g/m2 |
100-500g/m2 |
|
Laminating Speed |
0-30m/min |
0-30m/min |
0-30m/min |
|
Gross Power |
18 kw |
19 kw |
20 kw |
|
Total Weigth |
1700 kgs |
1900 kgs |
2100 kgs |
|
Overall Dimensions |
4600*1560*1500mm |
4600*1760*1500mm |
4600*1950*1500mm |
Please write more details of your specific requirement, so our sales team can provide you right machine you need.
