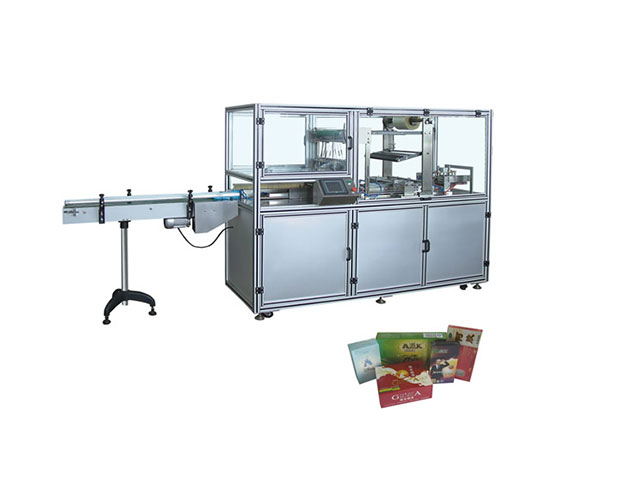

BTB-400 Cellophane overwrapping machine
Product Feature:
This machine is widely applicable to the packaging of various single large box articles, such as the medicine, health products, foodstuff, daily cosmetics, stationery articles, and audiovisual products, or the collective blister pack of multi-piece box articles (with gold tear tape).
The work can be finished by a series of cams in the machine driving various floating links and parts. Human-machine interface is realized in terms of multifunctional digital-display frequency-conversion step-less speed regulation, PLC programmed control technology, automatic box feeding and automatic counting and touch screen display, pneumatic film falling; the machine can be combined to use with other production line.
Technical Specification:
|
Packing Material |
BOPP film and gold tear tape |
|
Packing Speed |
25-40packs/min |
|
Packing Size |
(L)300×(W)200×(H)100mm |
|
Electric Supply & Power |
220V 50Hz 5kw |
|
Weight |
800kg |
|
Overall Dimensions |
(L)2400×(W)1200×(H)1800mm |
Please write more details of your specific requirement, so our sales team can provide you right machine you need.
