KGUV-1000A/1200A Automatic Whole UV Coating Machine

KGUV-1000A/1200A automatic whole UV coating machine I designed based on the semi-auto UV coating machine. With frequency conversion control,

KGUV-1000A/1200A Automatic Whole UV Coating Machine

Features:

KGUV-1000A/1200A automatic whole UV coating machine I designed based on the semi-auto UV coating machine. With frequency conversion control, oil quantifies which is decided according to the different thickness of the paper, can be controlled by different linear velocity. With easy operation, fundamental improvement in the printing paper surface and smoothness of coating products without orange peel veins, the machine optimizes polishing products.

Technical specifications:

Model

KGUV-1000A

KGUV-1200A

Max. paper size

780×950mm

780×1150mm

Min. paper size

340×240mm

340×240mm

Max. coating width

950mm

1150mm

Paper thickness

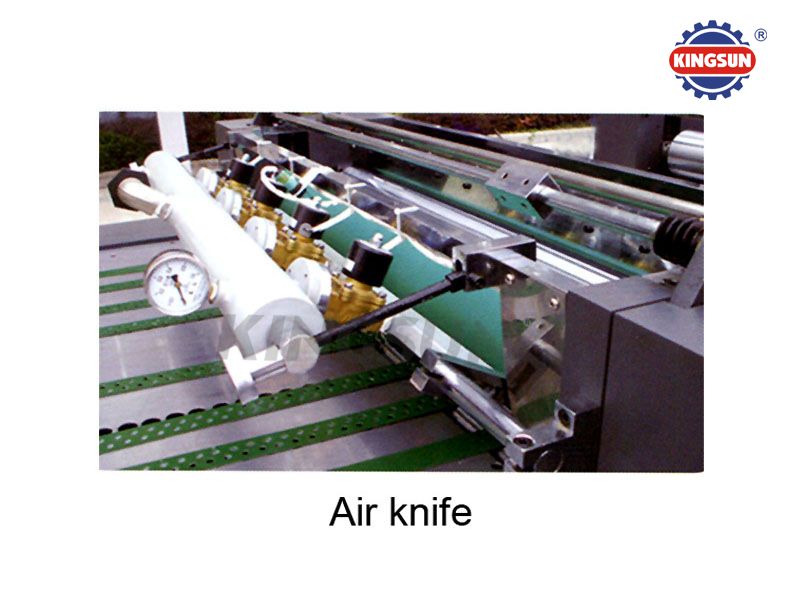

80-600g/㎡(with air knife)

200-600g/㎡

80-600g/㎡(with air knife)

200-600g/㎡

Max. feeding speed

8000pcs/hour(thick paper)

4000pcs/hour(thin paper)

8000pcs/hour(thick paper)

4000pcs/hour(thin paper)

Total weight

6500KG

7000KG

Total power

65KW

65KW

Overall dimensions

12000×1880×1710mm

12000×2080×1710mm

Please write more details of your specific requirement, so our sales team can provide you right machine you need.
