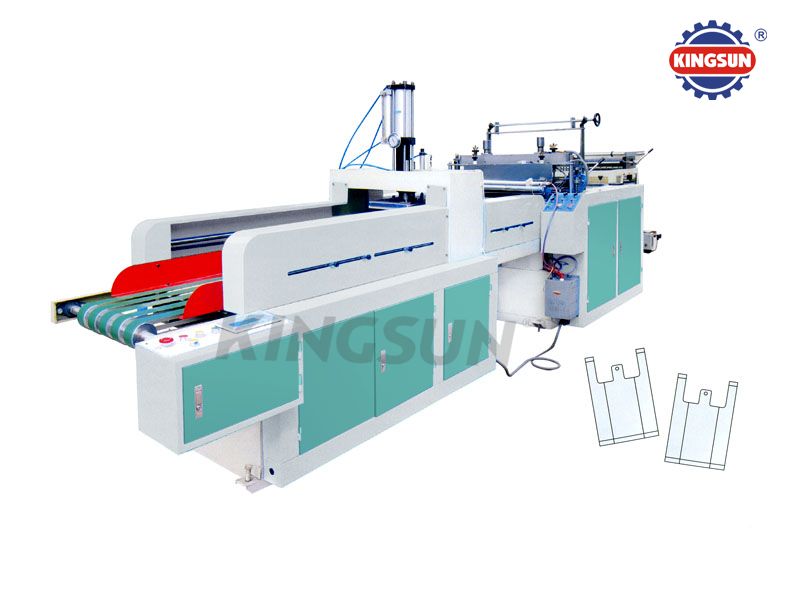

DFHQ Fully Automatic Vest Bag Making Machines

The machine adopts the materials like rolled films of LDPE and HDPE to manufacture vest tags.

DFHQ Full Automatic Vest shopping Bag Making Machines

Introduction:

The machine adopts the materials like rolled films of LDPE and HDPE to manufacture vest tags.

Features:

It adopts computer PLC control, featuring in high degree of automation, and servo (stepping) motor to fix the length, photoelectric tracking, auto punch, finished product automatic conveying. It is of good production benefits.

Main specifications:

Model

DFHQ-600

DFHQ-700

Max. Width of bag making

580mm

680mm

Max. Length of bag-making

950mm

950mm

Speed of bag-making

30-130pcs/min

30-130pcs/min

Power of motor

1.1kw

1.5kw

Weight

750kg

800kg

External dimension

4200×1350×1650mm

4200×1450×1650mm


Please write more details of your specific requirement, so our sales team can provide you right machine you need.
