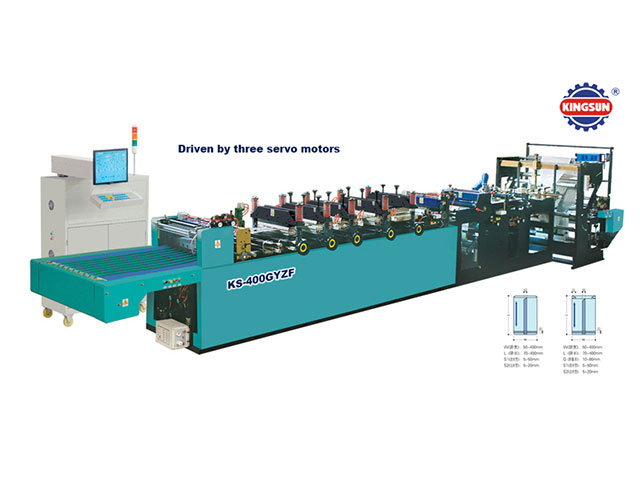

KS-400GYZF Middle sealing high speed automatic plastic bag making machine

KS-400GYZF Middle sealing high speed automatic plastic bag making machine

Material: various compound films.
Film Roll folding: max width: 850mm, max diameter: 600mm.

KS-400GYZF Middle sealing high speed automatic plastic bag making machines

Application range:
Material: various compound films.
Film Roll folding: max width: 850mm, max diameter: 600mm.
Main data:
Bagging speed:190 parts/min (mechanical design speed), approx. 45m/min.
Bagging width:max width 400mm.
Bagging length:50-400mm,(multiple conveying device can be adopted when over-long)When the bag length is above 300mm,it will change into multiple conveyances.
Notes:The actual operation speed will reduce for the reason of difference of the bag type and material.

Unwinding unit:

Put the air shaft horizontally,with V fold support,and pneumatically lock.
Control: tension is automatically controlled by dancing roller, magnetic powder brake displacement sensor.
Driving mode:
Feeding traction: driven by AC servo motor.
Upper & lower sealing press: driven by AC servo motor.
Functions:
Temperature: 0~300℃,contact-free automatic control, CRT displaying.
Automatic count: presetting is available.
Punching device: time can be preset, continuous or interval punching is available.
Working mode: printed, non-printed.
Mode of multiple conveyances: twice to six times conveyance.
Measurement for length: distance between color scales can be measured photo-electrically.
Selectivity: feeding without movement, upper & lower regulating trimmer can be selected.
Message alert: lost of photoelectricity,lost of temperature,servo motor alarm, tension alarm and auto-switch off the machine.
Electricity-use configuration:
Feeding driving servo motor:1.0kw×2=2.0kw
Upper & lower servo motor: 3.5kw×1=3.5kw
Unwinding traction motor: 0.55kw×1=0.55kw
Middle-seal device: 2.2kw×2=4.4kw
Lateral heat seal device: 4.4kw×3=13.2kw
Plastic Middle-seal:2.2 kw×2=4.4kw
Control system and others: 3kw
Total: Approx. 30kw
Air pressure: 0.6MPa(6kgf/cm2)
Cooling water: Approx.15L/min
Gross weight of equipment:Approx 3000kgs
Dimension(L x W x H):7550×1300×1450mm
Control mode:
Adopts the industrial control equipment,domestic displayer or touch screen.

Note: Subject to change without prior notice!
