SHH-E Automatic corrugated carton folder gluers

  • SHH-E Automatic corrugated carton folder gluers
  • SHH-E Automatic corrugated carton folder gluers
  • SHH-E Automatic corrugated carton folder gluers
  • SHH-E Automatic corrugated carton folder gluers
  • SHH-E Automatic corrugated carton folder gluers
  • SHH-E Automatic corrugated carton folder gluers
  • SHH-E Automatic corrugated carton folder gluers

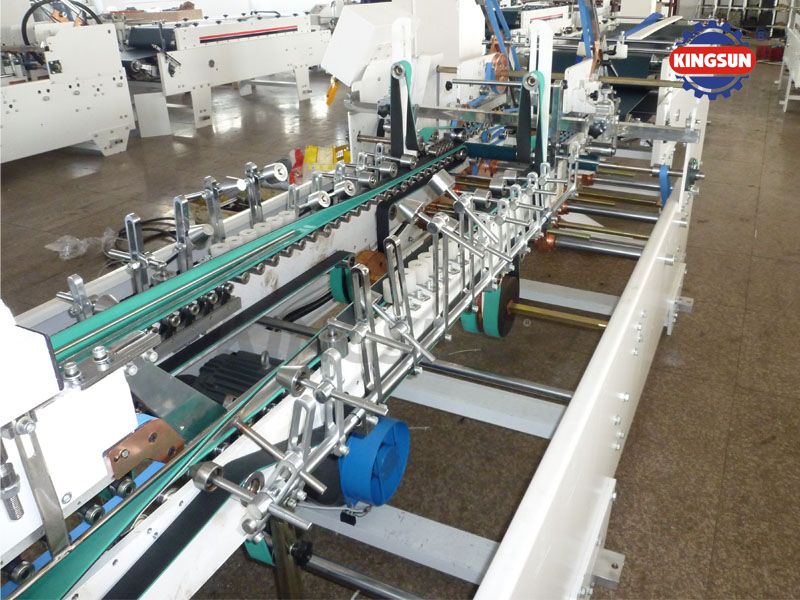

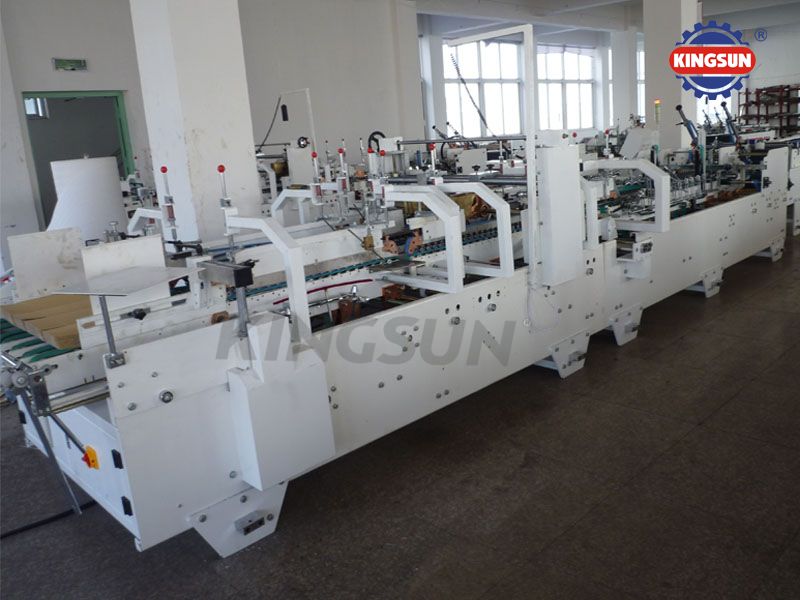

SHH-E Automatic corrugated carton folder gluers

The forming beautiful shape, easy to fill boxes in kind, more convenient to open. Separate operation before and after the single transducer. Is more economical, more practical models. Professional for the wine box , gluing side keep stright no inclined , sticky boxes degree of intensity, will not be break and cracks, etc.,

SHH-E Automatic corrugated paper folder gluers

SHH-E Series is a new economical High speed and crash lock bottom automatic folder gluer .

The forming beautiful shape, easy to fill boxes in kind, more convenient to open. Separate operation before and after the single transducer. Is more economical, more practical models. Professional for the wine box , gluing side keep stright no inclined , sticky boxes degree of intensity, will not be break and cracks, etc., can do 15,000 or more per hour like the wine box with crash lock bottom . Also be used for various types of crash lock bottom boxes, medicine boxes, cosmetic boxes and do simple box ..

SHH-E automatic folder gluer drawing

SHH-1200E

Type of box

Amax

Amin

Bmax

Bmin

Cmin

Dmin

Fmin

No-edged bottom box

700mm

70mm

840mm

130mm

8mm

70mm

51mm

Edgde Bottom box

700mm

160mm

790mm

180mm

9mm

90mm

85mm


SHH-1400E

Type of box

Amax

Amin

Bmax

Bmin

Cmin

Dmin

Fmin

No-edged bottom box

700mm

70mm

1000mm

130mm

8mm

70mm

51mm

Edgde Bottom box

700mm

160mm

920mm

180mm

9mm

90mm

85mm


Characteristics:

Max linear velocity

220m/min

Suitable paper quality

220~800g/m² Cardpaper and E and F wave corrugated paper.

Paste box basic form

One-side edge pastes, two-side edge pastes, base pastes Both sides are folded, both sides are pre-folded.in Order to convenient to paste

Way of folding in reverse

One and three fold 90º ,two and four fold 180º

Please write more details of your specific requirement, so our sales team can provide you right machine you need.
