SAFM-800A Automatic Film Laminating Machine

1.Suitable for glueless film and thermal film.
2.Composed of feeding system, laminating system and cutting system and paper collecting and rewinding system.

SAFM-800A Automatic Film Laminating Machine

Features:

1.Suitable for glueless film and thermal film.

2.Composed of feeding system, laminating system and cutting system and paper collecting and rewinding system.

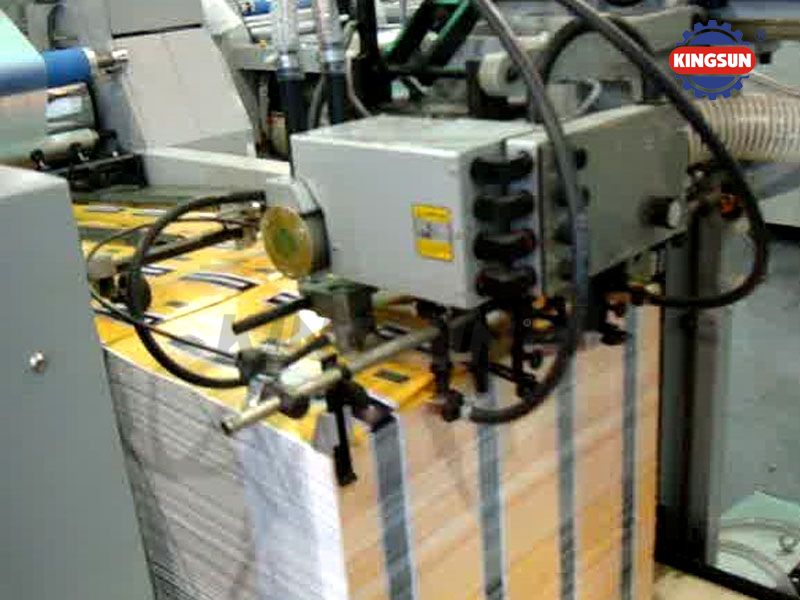

3.Automatic paper feeder with oil-free vacuum pump to ensure the automatic paper feeding.

4.Photoelectric controlled protector makes an automatic stop of the machine when it detects paper shortage and paper breaking.

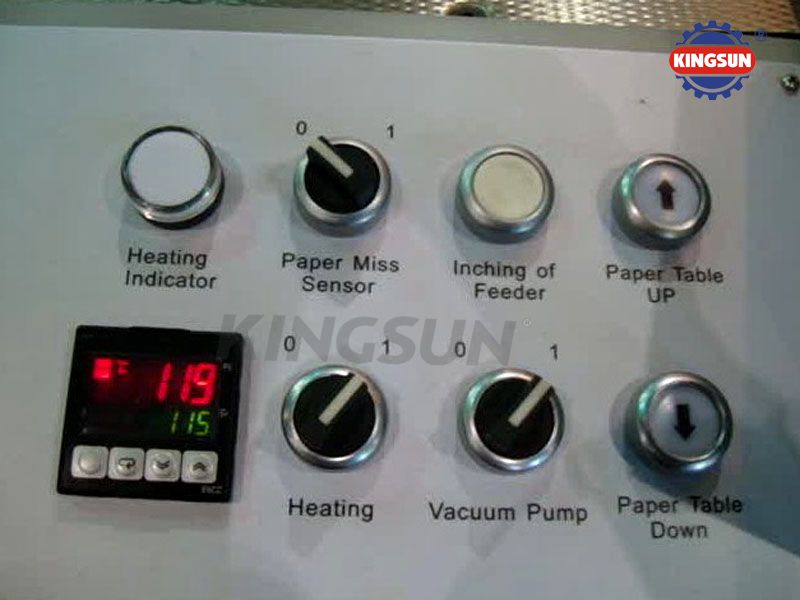

5.The electric and pneumatic device are controlled by PLC.

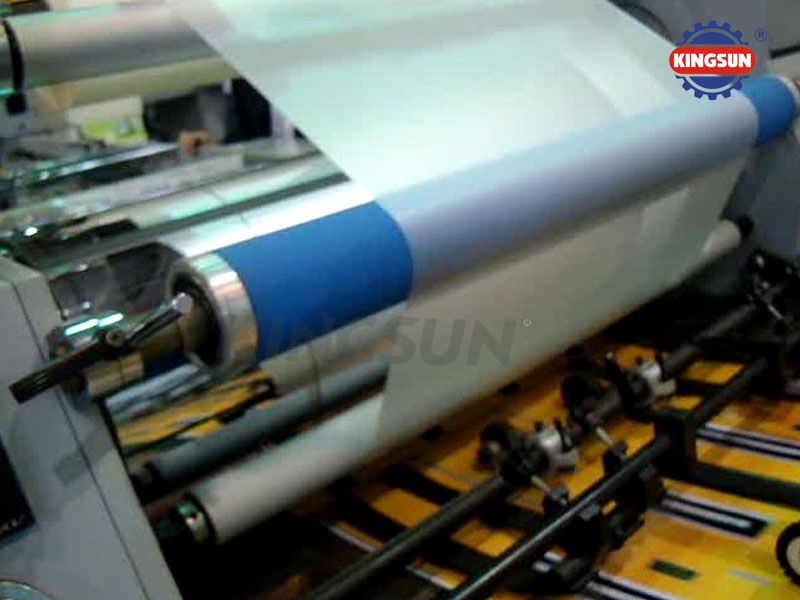

6.High precision chromed heating roller is with built-in oil heating system that ensures an excellent constant temperature.

7.Air shaft equipped with braking device that is easy to release the film at a proper tension and speed, and convenient for film loading and unloading, also ensures a accurate film location.

8.Film cutter is used to wide cut the film to fit the size of paper.

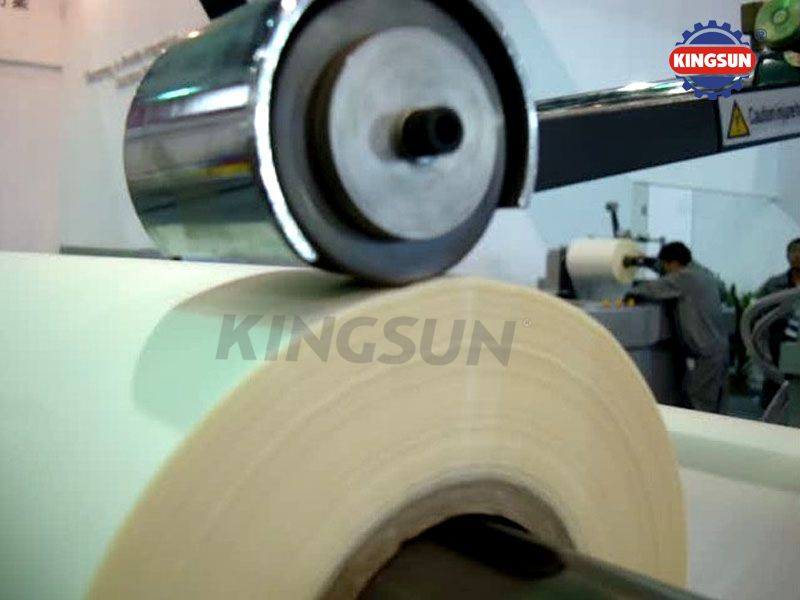

9.Film perforating wheel is used to perforate the film edge to make the automatic cutting of laminated paper to be much smoother.

10.Anti-curved device ensures a smooth laminated surface.

Technical specifications:

Model

SAFM-800A

Max. paper

780 x 1040mm

Min. paper

350 x 300mm

Laminating speed

0-45 m/min

Paper thickness

125-500g/㎡

Power

21kw

Overall dimensions

1800kg

Machine weight

3900 x 1630 x 1650mm
