ML Series Die Cutting Creasing Machine with CE Standard (die cutters)

Sliding bearings are made of high quality alloy copper, thus to enhance the effect of anti-friction and vibration reducing

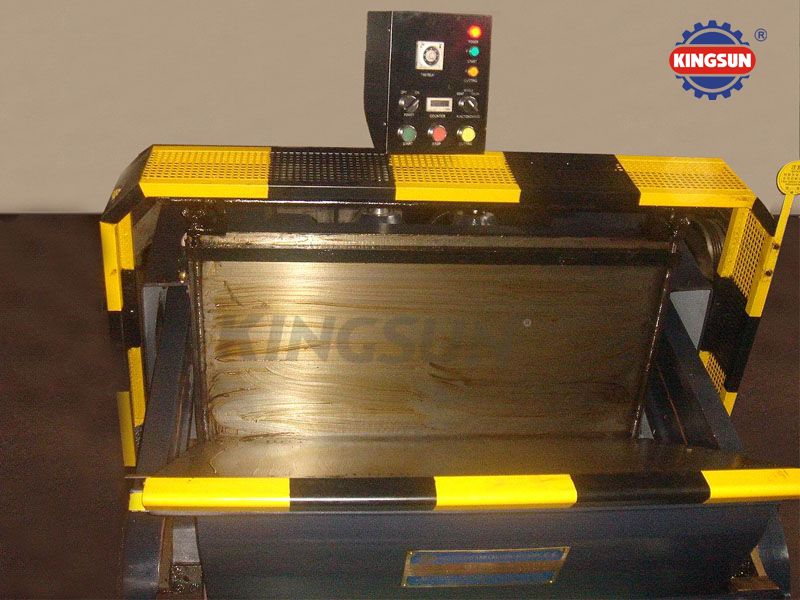

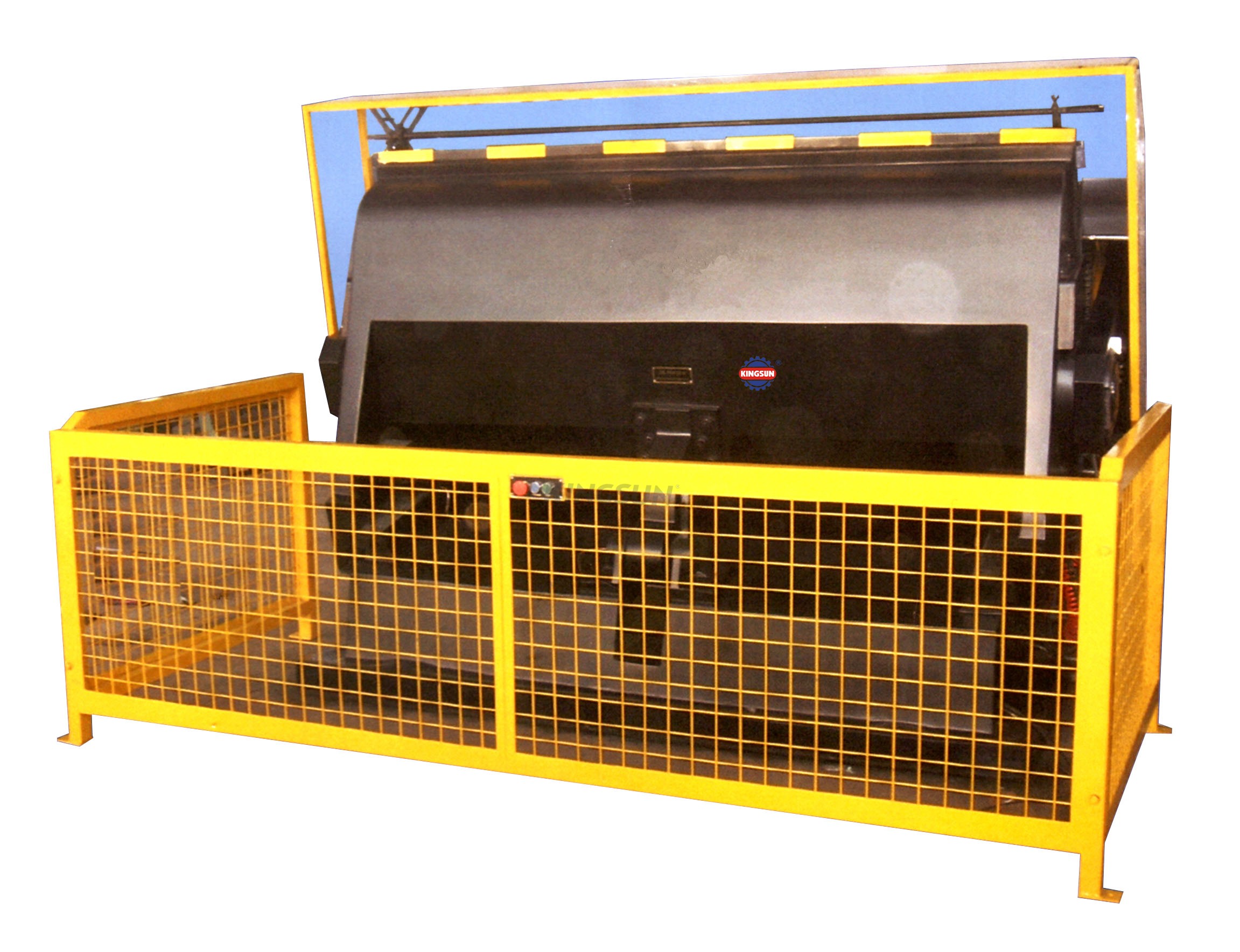

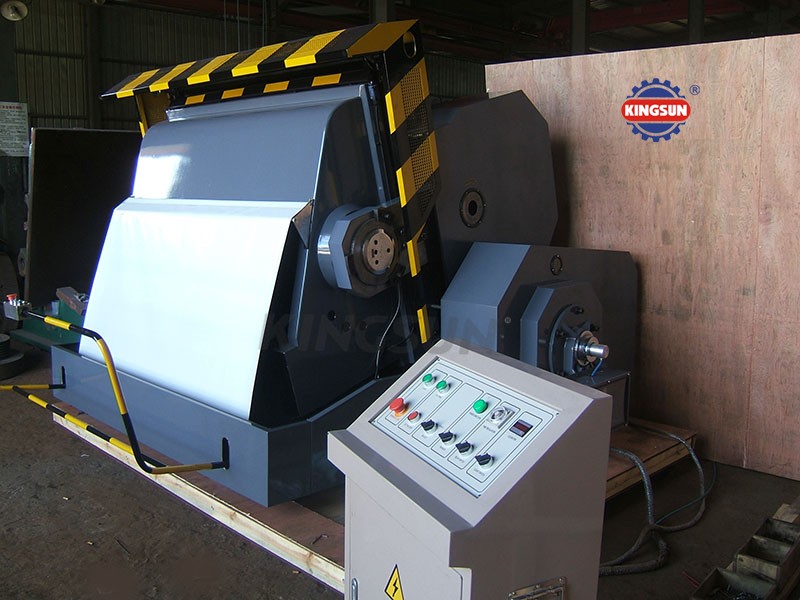

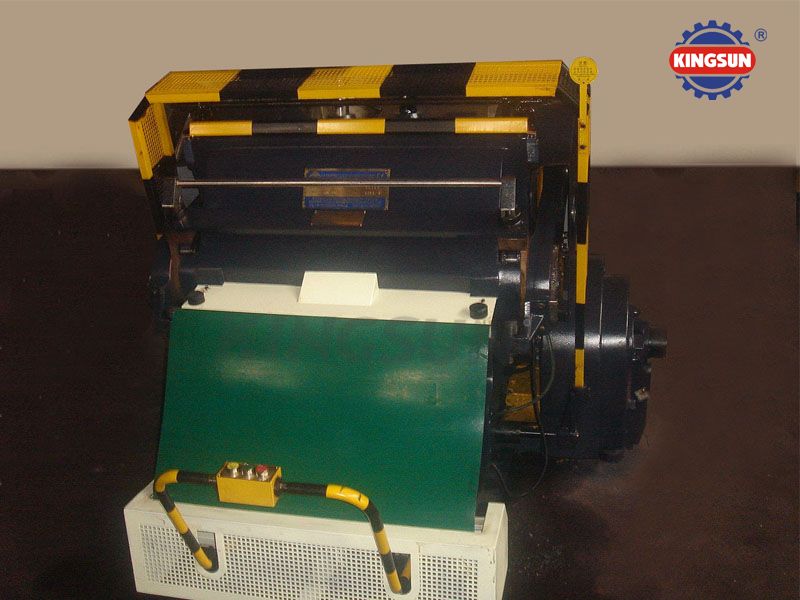

ML Series Die Cutting and Creasing Machine with CE standard ( Manual feed die cutter)

Features:

1.Sliding bearings are made of high quality alloy copper, thus to enhance the effect of anti-friction and vibration reducing.

2.Flywheel with big moment of force and large pressure.

3.High strength due to whole iron casting by using high quality material for machine body.

4.Single plate electromagnetic clutch is sensitive and reliable.

5.With functions of single piece, continuous and opening delay operating, dwell range is adjustable from 1-10 seconds.

6.Operating position is reasonably designed, moving-bed can be opened to its optimum.

7.Central lubrication system guarantees fine lubrication and reduces friction.

8.Safety protection system is reliable.

9.Adjustable chase clamp structure can adapt all kind of die mould plate.

10.Easy to operate and maintain.

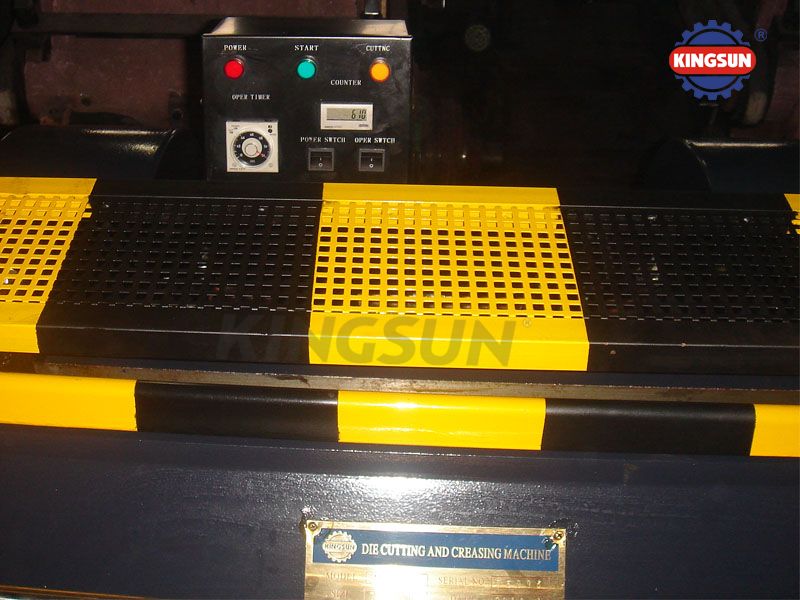

11.Electric control system is in line with international standard.

12.CE standard type can be made upon request: with all electric components world famous brand.

13.Heating plate as option for die cutting plastic sheet. Bigger size ML-3000 available for special made.

Technical specifications:

Model

Inner chase

Speed

strokes/min

Rule length

Weight

Power

Overall size

ML 750

750x520mm

25±3

15m

2000kg

2.2kw

126x135x128cm

ML 930

930x660mm

25±3

25m

3200kg

4 kw

185x165x195cm

ML 1040

1040x720mm

23±3

30m

3500kg

4 kw

185x175x200cm

ML 1100

1100x800mm

23±2

32m

4500kg

4 kw(6p)

210x197x210cm

ML 1200

1200x830mm

20±2

32m

4500kg

5.5 kw

210x200x210cm

ML 1300

1300x920mm

20±2

40m

5600kg

5.5 kw

202x242x215cm

ML 1400

1400x1000mm

18±2

45m

6200kg

7.5 kw

201x240x193cm

ML 1500

1500x1050mm

18±2

48m

7500kg

7.5kw

205x262x220cm

ML 1700

1700x1300mm

16±2

50M

14500kg

11kw

220x280x213cm

ML 1800

1800x1300mm

16±2

52M

15500kg

11kw

234x292x220cm

ML 2000

2000x1400mm

16±2

58M

16500kg

15kw

234x310x220cm

ML 2500

2500x1400mm

13±2

75M

19000kg

18.50kw

234x360x220cm
