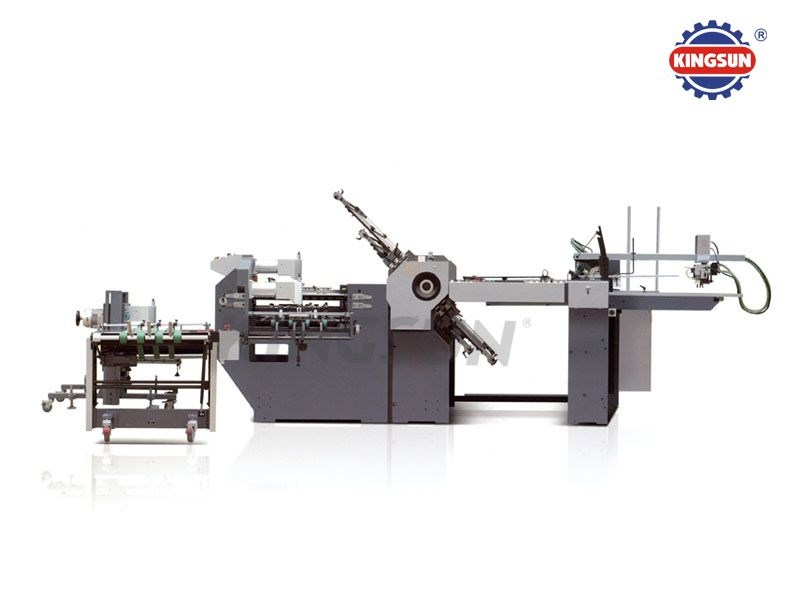

KYHD660E/720E/780E Combi-folding Machine (with Electric Control Knife)

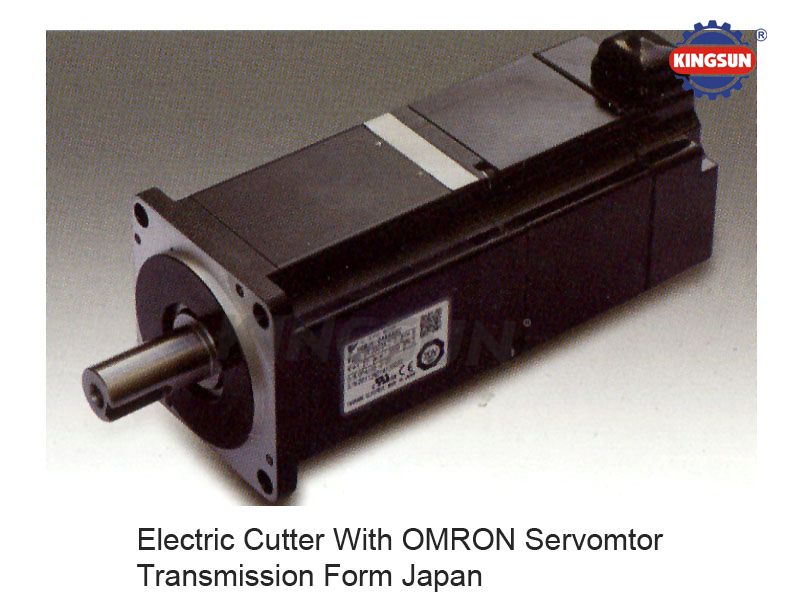

This machine adopts Japan’s OMRON servo motor (photoelectric transmission system), which has largely improved the folding knife’s precision and speed, stabilized the knife’s function, simplified the machine operation.

KYHD660E/720E/780E Combi-folding Machine (with Electric Control Knife)

Introduction:

This machine adopts Japan’s OMRON servo motor (photoelectric transmission system), which has largely improved the folding knife’s precision and speed, stabilized the knife’s function, simplified the machine operation.

Features:

1. Top brand electricity

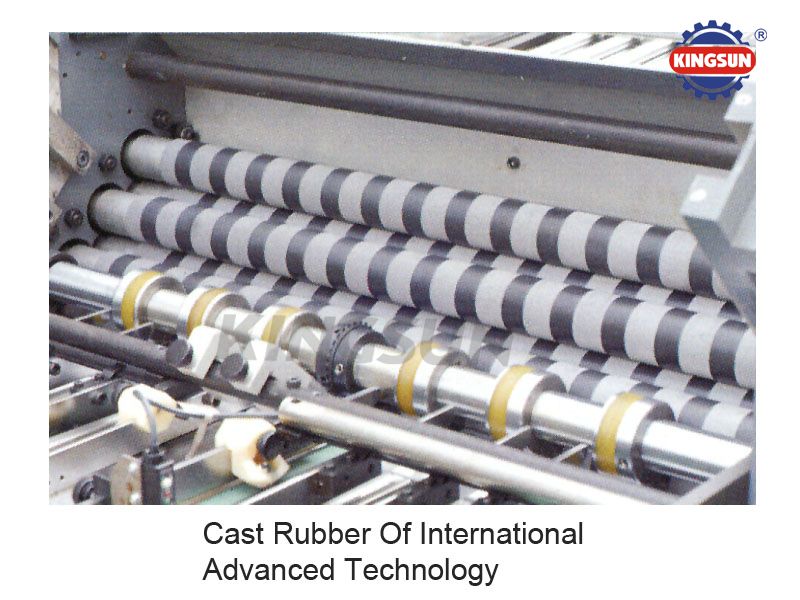

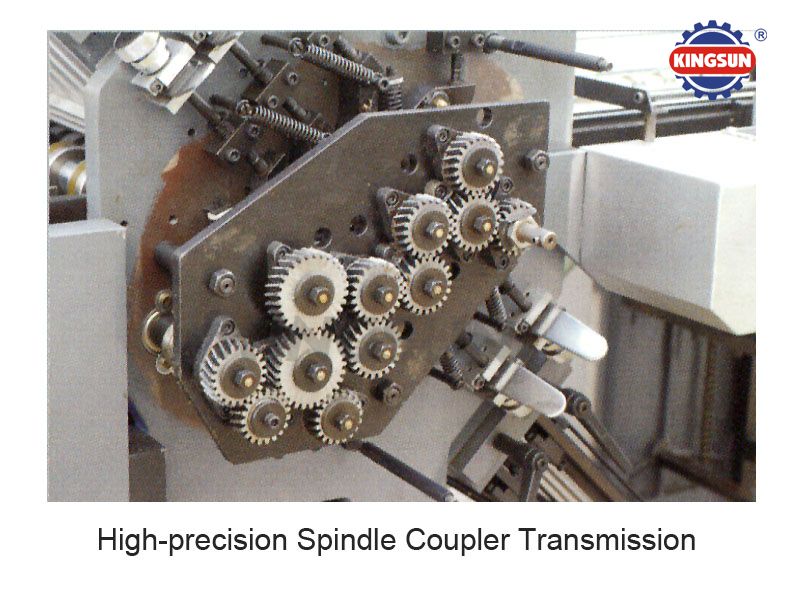

2. Casted rubber roller. Spindle couplers’ adjusting precision is up to detection system.

3. Frequency control system

4. PLC touch screen: malfunctions ‘detecting and tracking, data displaying, troubleshooting tips and so on.

Technical Specification:

Model

KYHD660E

KYHD720E

KYHD780E

Foldable max sheet size

660×1040mm

720×1090mm

780×1160mm

Foldable min sheet size

150×200mm

Foldable sheet rotation range

40-20g/㎡

Folding & rolling max line speed

170m/min

180m/min

180m/min

Clasp knife max. speed

200 strokes/min

Total power

6kw

6.5kw

7kw

Packaging weight

2590kg

2790kg

2990kg
