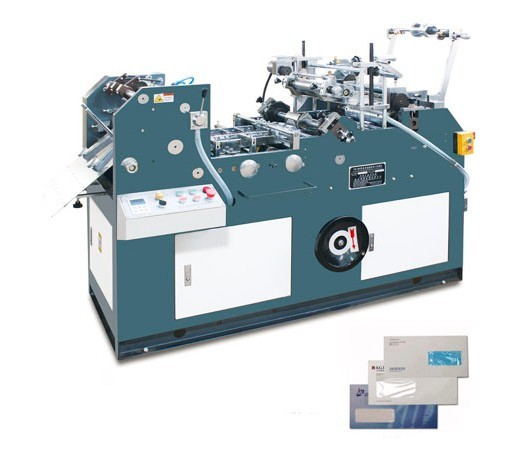

KTM-390 model automatic envelope window pasting machine

KTM-390 model automatic window-pasting machine for envelops and CD bag, it was designed and manufactured by our company independently. It is a new generation window envelope film pasting machine. It can paste the bag windows for Chinese style (center pasting) envelops ranging from No.1 to No.9,

KTM-390 model automatic envelope window pasting machine

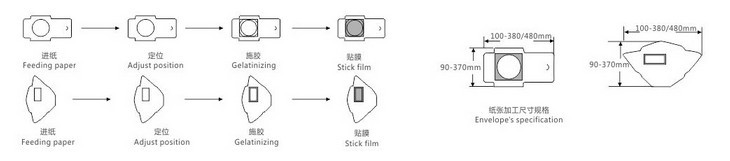

KTM-390 model automatic window-pasting machine for envelops and CD bag, it was designed and manufactured by our company independently. It is a new generation window envelope film pasting machine. It can paste the bag windows for Chinese style (center pasting) envelops ranging from No.1 to No.9, the western-style envelopes ranging from No.2 to No.7, CD bags of 80 X 80mm and 130 X 130mm, glasses bags and the windows of other non-standard products. It can also paste the nonwoven cloth and gold foil. It adopted sucking bottom tilting paper and blowing paper. It can precisely position the materials by adjusting the chain dialing pin, automatically glue by its cylinder, assuring the equal quantity of glue on the material; its film-pasting parts adopted progressive governor to adjust the length of film, and its cylinder can automatically paste the film; in processing, it is characterized by simple operation, precise positioning and reliable performance. It is a quality product for pasting the paper envelopes or paper bags.

Main specifications:

Model

KTM-390

Applicable paper size

80-180 g/m2

Working speed

5000-18000pcs/h

Paper size

90×100-370×380mm

Window size

30×55-130×150mm

Motor power

1.5kw

Air pump power

3.0kw

Weight

1200KG

Machine size(L x W x H)

2100 × 950 × 1100mm

Welcome to our website! Please feel free to send us your inquiry in detail, we will reply you as soon as possible.
