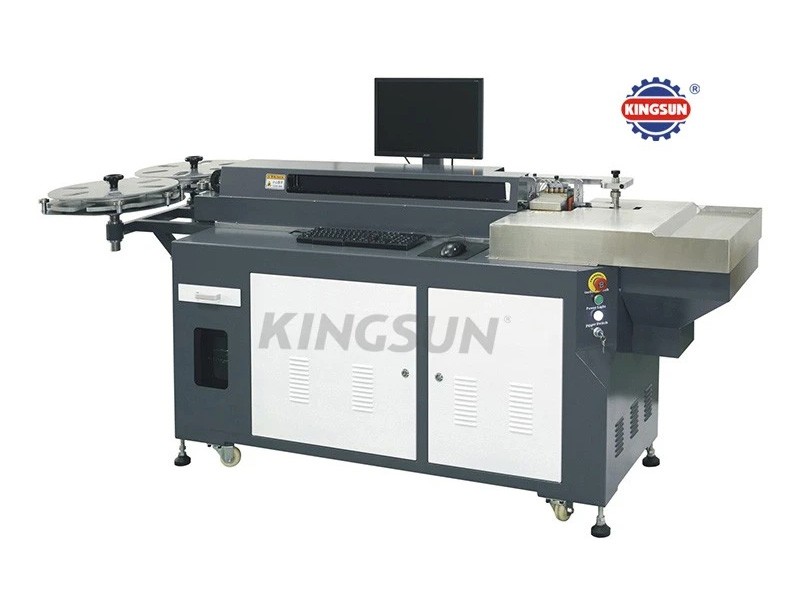

KT-850 Model Cutting Rule Blade Bending Machines

KT-850 Model Cutting Rule Blade Bending Machines

1)Possess of functions such as bending, bridge, front lipping, back lipping, cutting, flat cutting six functions.
2)Panasonic Servo motor system + Ball-screw guide- rail in design, eradicate skidding and dislocated.

KT-850 Model Cutting Rule Blade Bending Machines

This is ideal rule bender equipment for making die mould for die-cutting machines.

Functions and usage:

1)Possess of functions such as bending, bridge, front lipping, back lipping, cutting, flat cutting six functions.
2)Panasonic Servo motor system + Ball-screw guide- rail in design, eradicate skidding and dislocated.
3)Unique imported mould tool design, easy to bend pattern, high precision of size, durable
4)In order to guarantee precision and long-life span, transmission and control parts are imported
5)Self-developed latest bending control system, easy to operate and upgrade available.
6)Fully English & Chinese interface, easy to learn how to operate, make bending work more easy.
7)It can be installed soon after bending patterns form the machine, no need extra more hard work.
8)It's widely used cutting box mould,art paper,carton boxes.

9)Exactly to realize fully automatic bending, help to save plate making time.

Main specifications:

Blade thickness(mm)

0.71mm/1.05mm/1.07mm

Bending Blade height(mm)

23.8mm-50mm

Bridge width

Over 5.5mm any sizes available.

Max. bending angle

100°

Min. ARC radius of 90 degree

0.4mm

Front Min. bending size

2.5

Back Min. cutting size

1.0mm

Feeding precision

±0.03mm

Bending flatness

±0.2

Functions

Bending, cutting, lipping, bridge

Cutting methods

Swing cutting or Auto flat cutting

Optimal pattern format

Dxf format (Auto CAD)

Air supply

0.6mpa

Power supply

380∨ 50Hz(Standard)

Machine total power

1.3KW

Gross weight.

450kgs

Overall dimensions

2700×1050×1350mm(L×W×H)

H.S. Code

8462219000

Welcome to our website! Please feel free to send us your inquiry in detail, we will reply you as soon as possible.
