Automatic Double Side Adhesive Tape Application Machine is specially for stick the double side tape on paper board or boxes, it can save lots of time and very efficient for application the tape.
kingsungroup
E-mail Us
PDF Download
Video Link

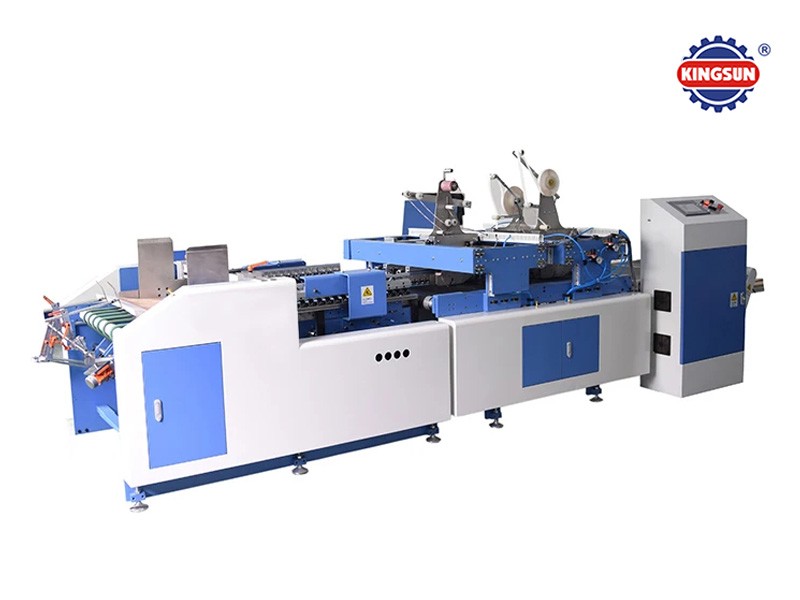

KST-850 Automatic Double Side Adhesive Tape Application Machine
This Double Side Tape Application Machine is a new designed machine, which is specially for double side adhesive tape sticking, its technology from Germany. With feature of high efficient, high precise and high stability. It can set the length and sections of double side tape freely. The highest speed can reach 90m/min. This model is aimed at cardboard, corrugated board which need double side tape to stick. The designation is easy for adjustment and operation. This is your best choice for double side tape sticking, also good for put tear tape.
Main technical specifications:
|
Material： |
Over 200gsm paper board, plastic, E, B and C corrugated board. |
|
Open blank size: |
Min.140mm x 120mm |
|
Max.850mm x 850mm |
|
|
Working width: |
850 mm |
|
Max speed: |
90m/min |
|
Tape roll width: |
5–30 mm |
|
Precision: |
+/-1.5 mm |
|
Sticking style: |
Vertical sticking |
|
Number of installable tape applicators |
2pcs applicator head for standard machine |
|
Needed air supply: |
Min. 6 bar |
|
Power required: |
3.2 KW(220V,50HZ) |
|
Paper feeding way: |
Automatic feeding |
|
Weight: |
Approx. 1500 KG |
|
Machine Size(L x W x H): |
5600 x 1500 x 1350 mm |
Please write more details of your specific requirement, so our sales team can provide you right machine you need.
