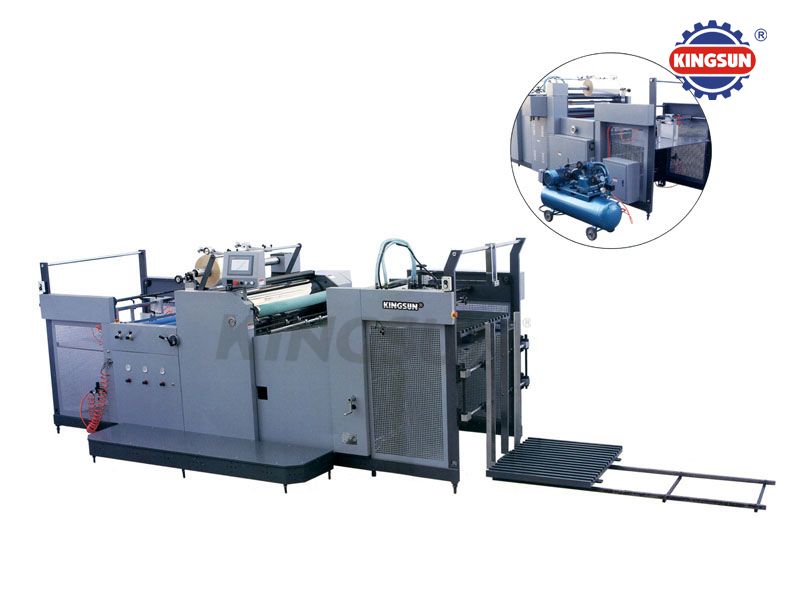

KFMG-800 Automatic Thermal Film Laminating Machine

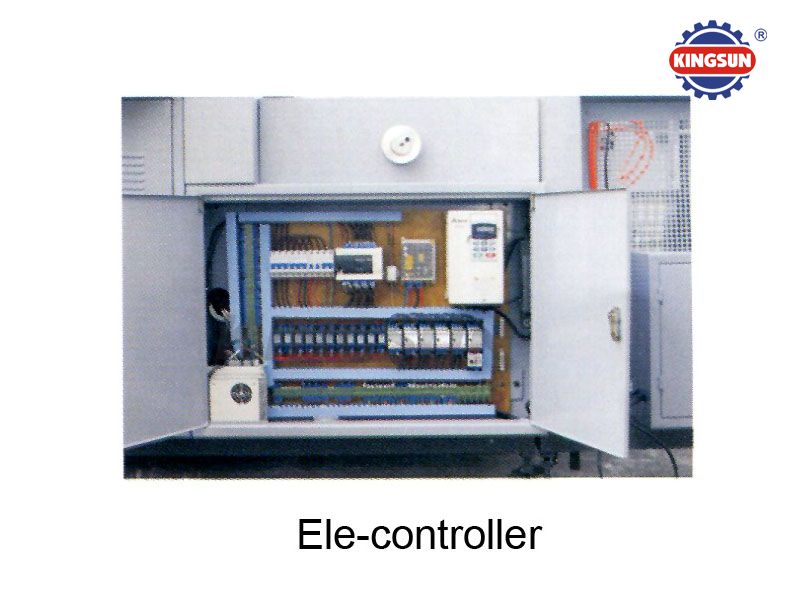

KFMG series automatic laminating machines are designed for the thermal film and glue-less film laminating. The machines are with automatic feeder, laminating, cutting, stacking and temperature controlling system. Electricity system can be controlled by the programmable controllers with the touch screen. Heating roller is built-in oil system.

KFMG-800, 1100 Automatic Thermal Film and Glue-less Laminating Machine

Introduction of laminating machine:

KFMG series automatic laminating machines are designed for the thermal film and glue-less film laminating. The machines are with automatic feeder, laminating, cutting, stacking and temperature controlling system. Electricity system can be controlled by the programmable controllers with the touch screen. Heating roller is built-in oil system. Also the machines are with advantages of high automation, easy operation, high speed and high precision. They have high performance but low cost with these character; so it is the first choice of large and medium-size enterprise.

Features:

1.Pre-stack and feeding system: the paper can be stacked without stopping during laminating.

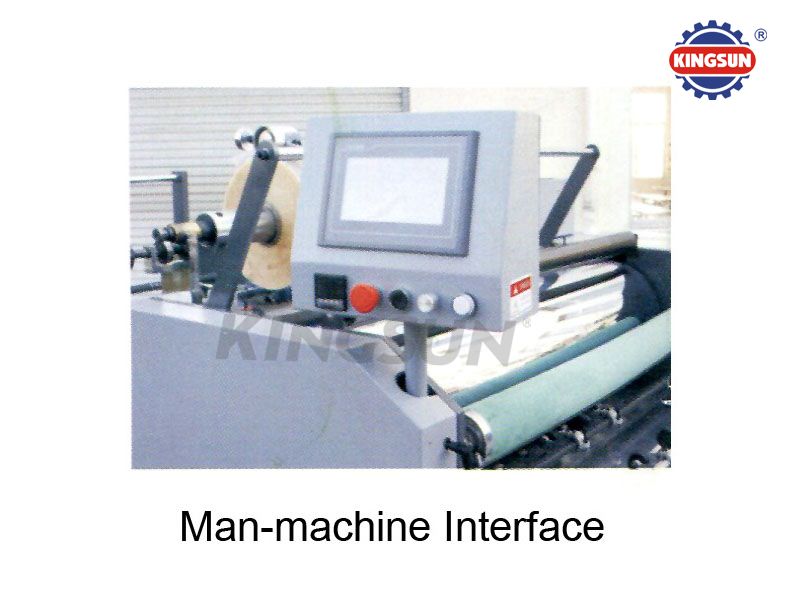

2.Man-machine interface system: input laminating sizes, set the stacking distance and view the machine working status through the 7.5 inches touch screen.

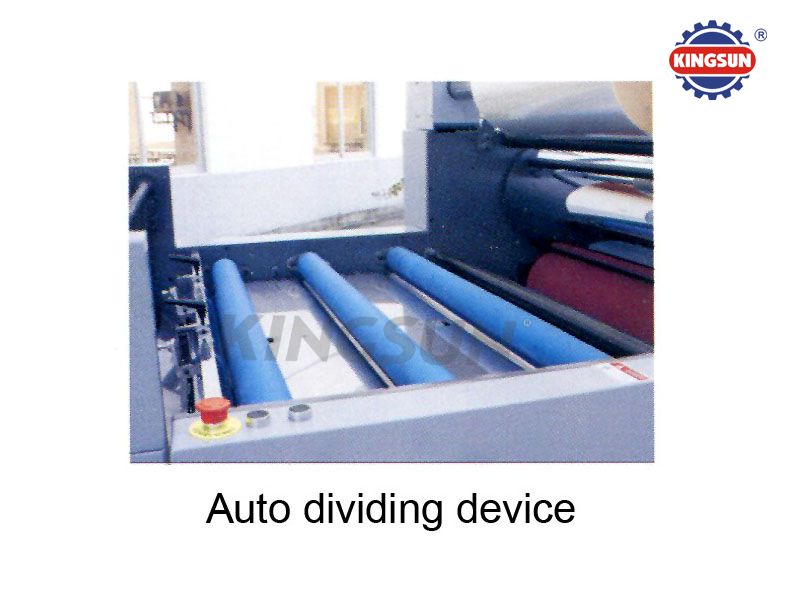

3.Dividing device: machines divide the finished laminating paper.

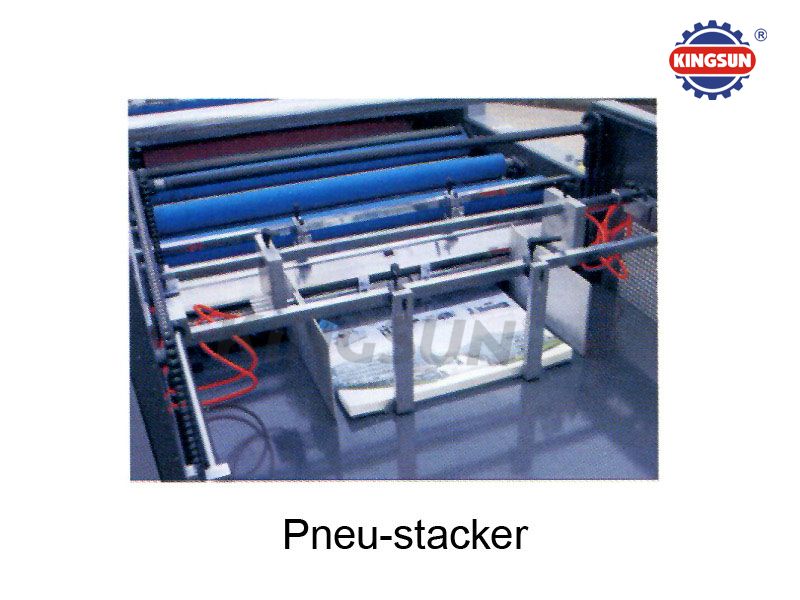

4.Auto-stacker: the stacker can collect finished laminating paper automatically with pneumatic patting system, whose patting frequency can be set according to your inquiry.

5.Film shaft is air expansion spindle.

Technical specifications:

Model

KFMG-800

KFMG-1100

Max. paper size

800×780

1040×780

Min. paper size

340×240

340×240

Paper thickness

125-450g/㎡

125-450g/㎡

Max. laminating speed

50m/min

50m/min

Total weight

2500KG

3000KG

Overall dimensions

3420×1500×1720mm

3420×1780×1720mm

Power

21KW

21KW

Welcome to our website! Please feel free to send us your inquiry in detail, we will reply you as soon as possible.
