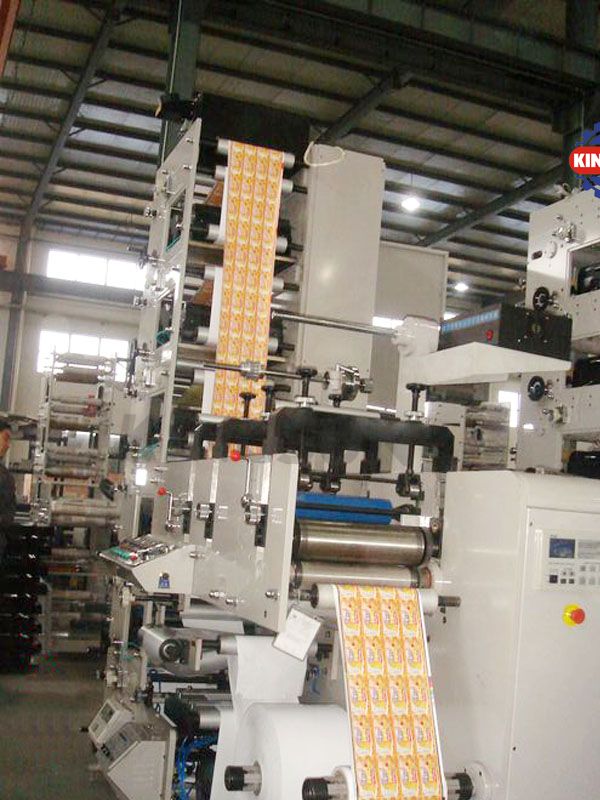

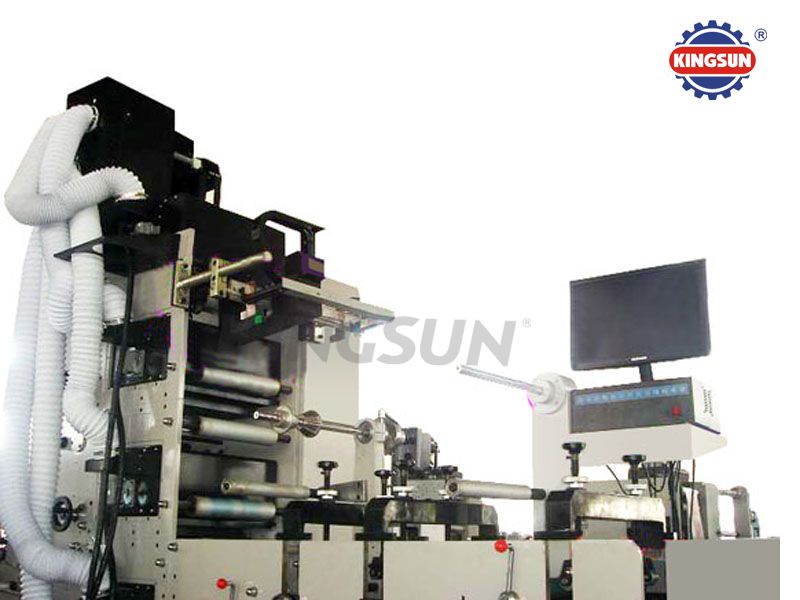

FP-320G Series Flexo Printing Machines

This series flexo printing machine is ideal flexo equipment for label printing.
1.ceramic anilox cylinder for ink transfer
2.unwinding adopts Mitsubishi tension controller
3.rewinding adopts Mitsubishi tension controller
4.printing unit with 360°plate register adjustment
5.three die-cutting stations,the first and second die-cutting station can do double sides working,the third die-cutting station can be used as sheeter

FP-320G/450G Models Flexo Printing Machines with Three Rotary Die-cutting Units (Flexo Printing Presses)

The FP-320G series flexo printing machines mainly for label paper or plastic film printing for printing and packaging industries. Compact stack type design and multi combination of various functions, it can do all kind of label printing and converting at one process. Low cost investment and quality printing can improve your ROI, especially in this fast change market nowadays, it is your ideal choice equipment for label making. Kingsun flexo printing press can custom-made according to your actual requirement, so this series flexo printing machines are more fit for your label production.

Features:

1.ceramic anilox cylinder for ink transfer

2.unwinding adopts Mitsubishi tension controller

3.rewinding adopts Mitsubishi tension controller

4.printing unit with 360°plate register adjustment

5.three die-cutting stations,the first and second die-cutting station can do double sides working,the third die-cutting station can be used as sheeter

6.computerized web-guiding system is installed in the front of printing unit,it unsures the material always in the right position

7.IR dryer for each printing unit or choose uv dryer system (extra to pay)

8.the anilox roller will be separated with plate roller and still keeping low speed running after machine stopped

9.imported frequency inverter for speed control

10.with laminating unit and rotary die cutting units

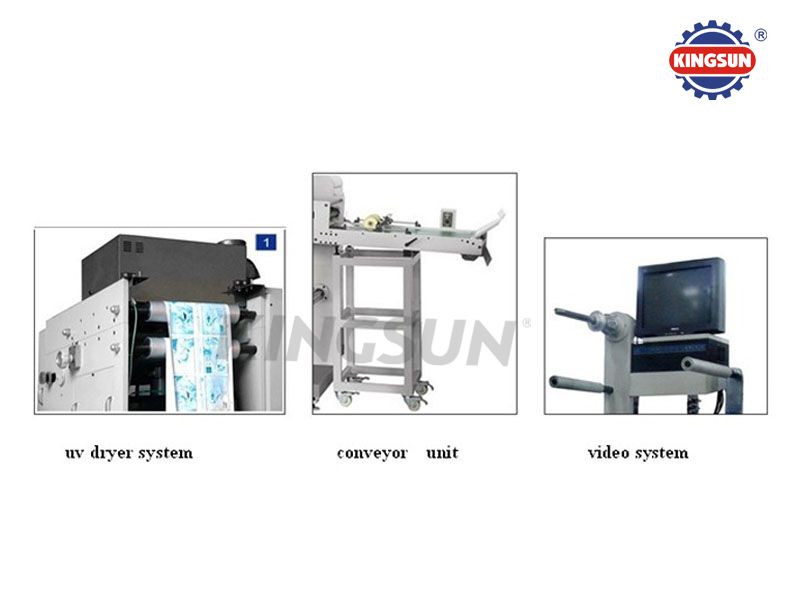

11.Optional parts:UV dryer,sheeter and conveyer belt,video system

12.this machine can finish material-feeding,printing ,varnishing,drying,laminating,die-cutting, rewinding and sheeter in a lump.

Main specifications:

Model

FP-320G

FP-450G

Printing speed

50m/min

50m/min

Printing color number

4, 5 or 6

4, 5 or 6

Max. web width

320mm

450mm

Max. printing width

310mm

430mm

Max. unwinding diameter

600mm

600mm

Max. rewinding diameter

600mm

600mm

Printing repeat length

175-355mm

175-355mm

Precision of color register

±0.1mm

±0.1mm

Overall dimensions

2X1.1X2.7M

2X1.25X2.7M

Weight

About 2800kg

About 3200kg

Note:  We welcome you to send us label samples and design, so our engineer can check what printing quality you required. Kingsun FP-320G series label flexo printing machine can test for label printing for you if you can prepare the flexo plate, after check the printing quality is all good, in this case you will have more confidence to buy printing equipment from us, also no risky any more for you!

Please write more details of your specific requirement, so our sales team can provide you right machine you need.
