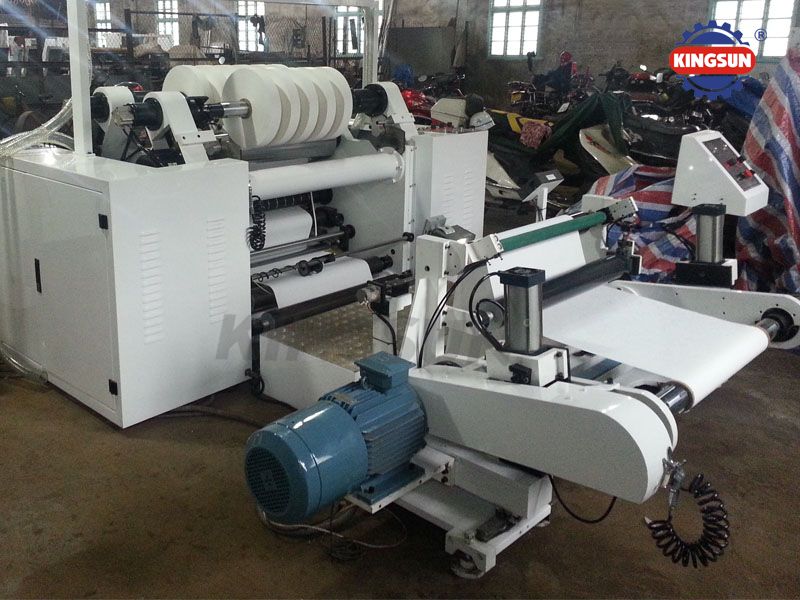

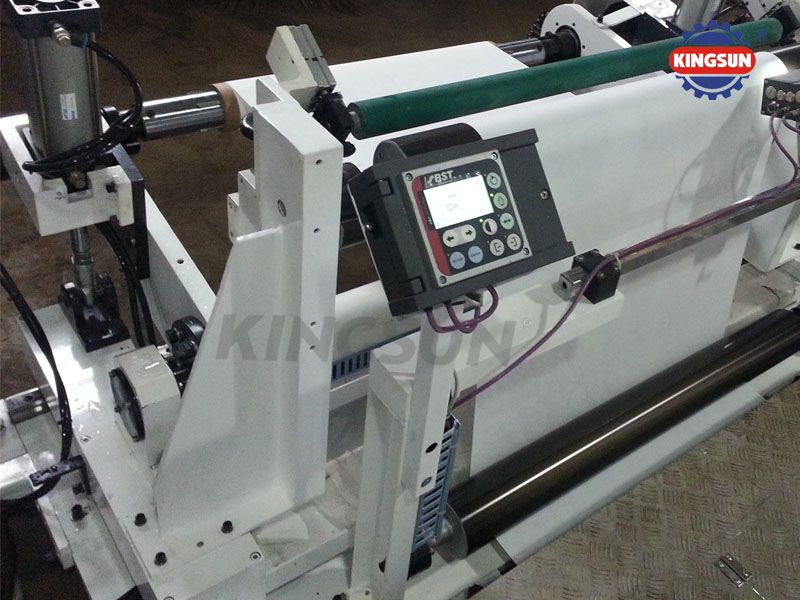

FHQZ-800 High-speed Paper Slitting Machine

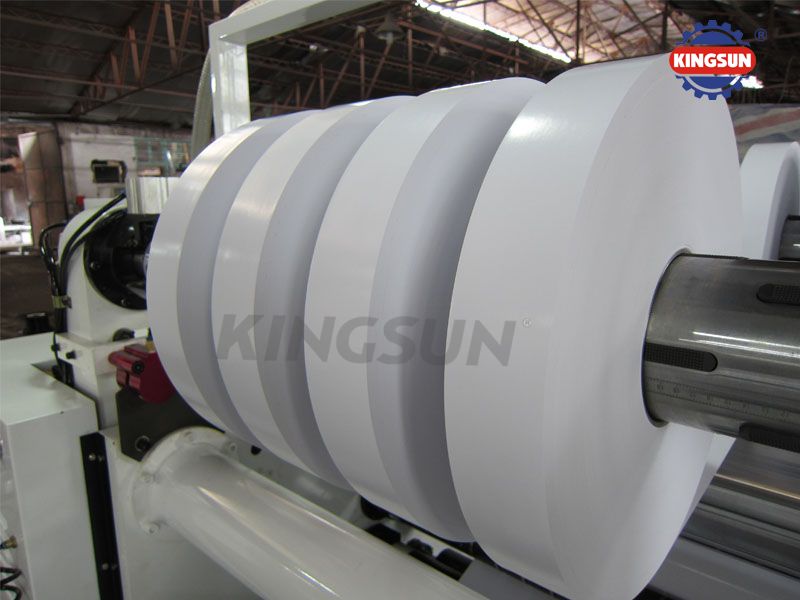

This machine applies to slitting and rewinding for 25-120g/㎡ roller paper (such as cigarette paper, tipping paper, cigarette label paper and other roller paper used for packaging and decoration.)

FHQZ-800 High-speed Paper Slitting Machine

Use:

This machine applies to slitting and rewinding for 25-120g/ roller paper (such as cigarette paper, tipping paper, cigarette label paper and other roller paper used for packaging and decoration.)

Feature:

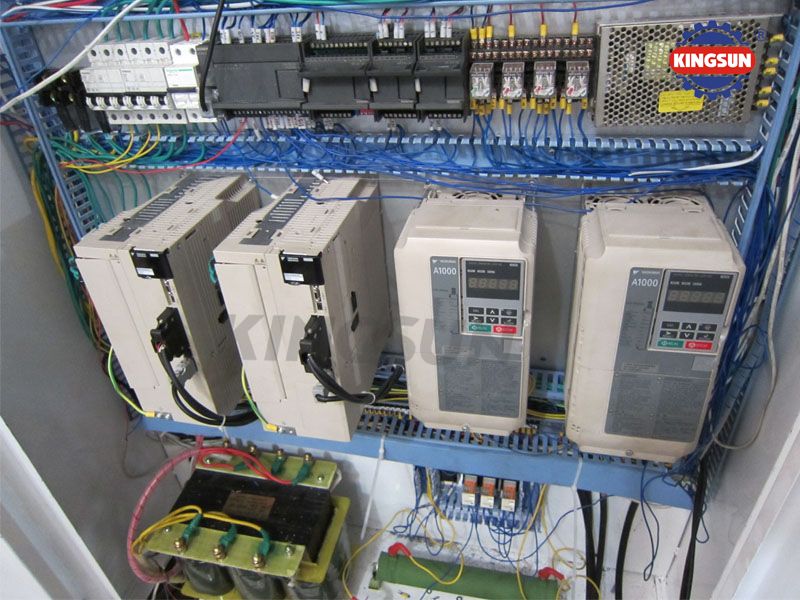

1.Electrical control system adopts imported PLC centralized control. Human-machine conversation is advanced by touch screen and operating parameters are set and displayed in accordance with different requirements for products.

2.Tension of reel winding for double reel winding shafts pneumatic paper pressure roller is controlled by Servo motor. It can be set with taper mode automatic control.

3.Tension for reel unwinding adopts AC frequency conversion control, which can enable tension for reel unwinding to be constant and unchangeable. Loading and unloading for raw materials adopts shaft gas-cap clamping and atmospheric pressure for lifting.

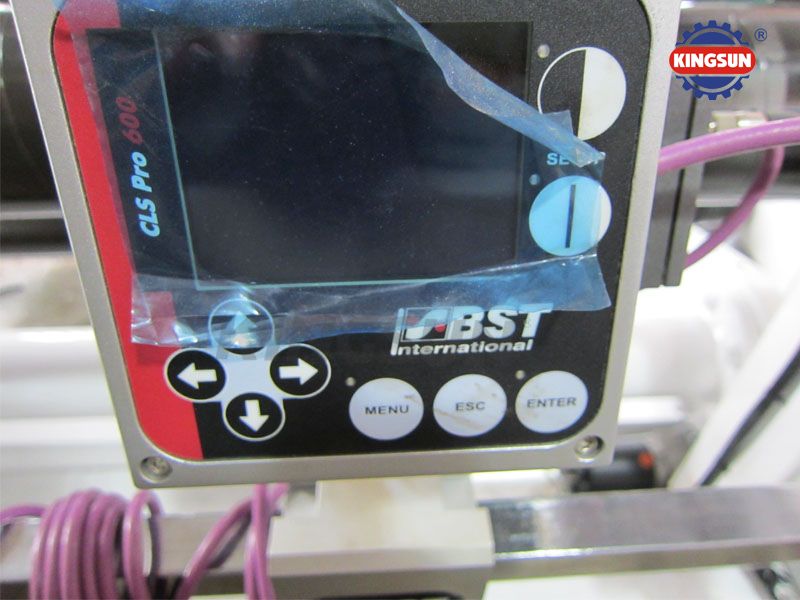

4.It adopts imported photoelectric correcting system with high correcting accuracy.

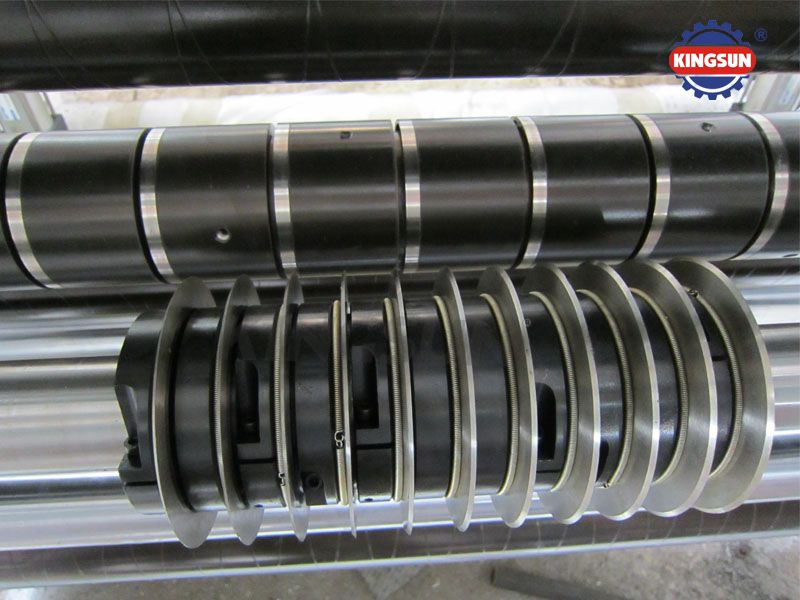

5.It adopts round knife for slitting with good smoothness for slitting disc.

6.This machine combines optical, mechanical, electrical and gas as one which can achieve purpose for high-speed slitting.

Main Technical Parameter:

Model

FHQZ-800

Max. Slitting and Rewinding Width

800mm

Max. Out Diameter of Unwinding

800mm

The Inner Diameter of Unwinding

76mm

Max. Out Diameter of Rewinding

600mm

The Inner Diameter of Rewinding

120mm

Max. Speed

400m/min

Paper Weight Range

25-120g/

Min Slitting and Rewinding Width

25mm

Main Motor Power

20kw

Weight of Machine

4.2T

Overall dimensions(L×W×H)

3500×4500×1700mm
