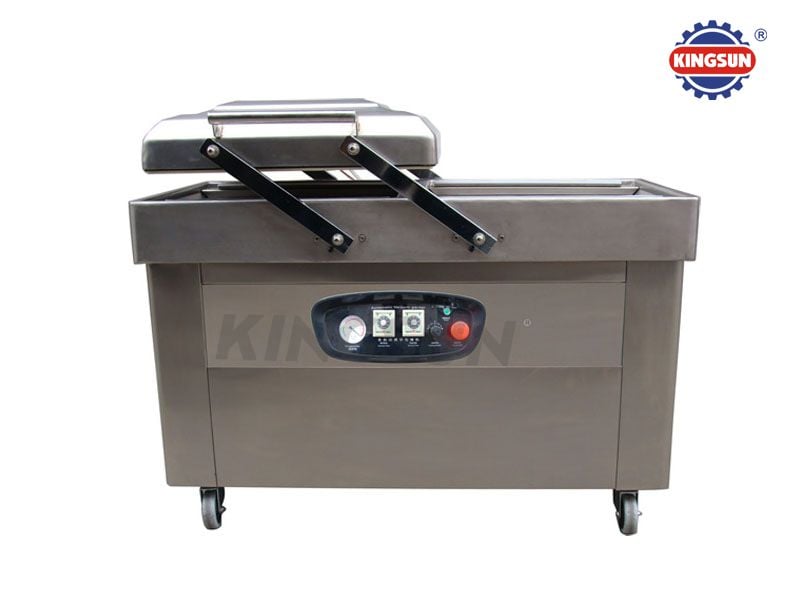

DZ-SB series double chambers vacuum packaging machine

DZ-SB series double chambers vacuum packaging machine

DZ-SB series double chambers vacuum packaging machine can finish the whole programs of vacuum extraction, gas flushing (optional), sealing, printing, cooling and exhaust automatically.

DZ-SB series double chambers vacuum packaging machine

Product Feature:

DZ-SB series double chambers vacuum packaging machine can finish the whole programs of vacuum extraction, gas flushing (optional), sealing, printing, cooling and exhaust automatically. The products after packing can be prevented from oxidation, going mould, insects or getting damp, thus can be kept fresh for longer time.

Note: Letter “Q” in the model stands for function of gas flushing. Choose if necessary.

Technical Specification:

Model

DZ-500/2SB

DZ-600/2SB

Voltage (V/Hz)

AC 220/50 380/50

Motor Power (W)

1500

Sealing Power (W)

600

700

Ultimate Vacuum Pressure (Kpa)

1

No. of Sealing Bar for
Each Chamber

2

Sealing Length (mm)

500

600

Sealing Width (mm)

10

Chamber Dimension
(L×W×H) (mm)

570×540×45

720×515×45

Vacuum Pump Rate
(m3/h)

40

Material of Vacuum Chamber

Stainless Steel

External Dimensions
(L×W×H) (mm)

1255×700×950

1460×980×590

Net Weight (Kg)

230

285

Welcome to our website! Please feel free to send us your inquiry in detail, we will reply you as soon as possible.
