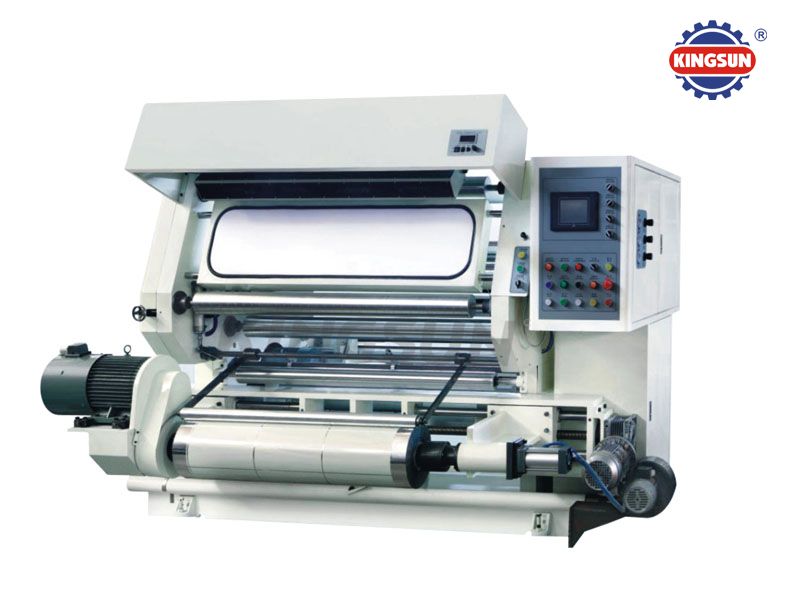

Doctoring Rewinding Machines FHD Series

Doctoring Rewinding Machines FHD Series

This series doctoring rewinding machine are using for rewind and inspect all kinds of printed roll materials like BOPP, PET, CPP and PVC film etc, for printing quality checking.

FHD series doctoring rewinding machines

Introduction:

This series doctoring rewinding machine are using for rewind and inspect all kinds of printed roll materials like BOPP, PET, CPP and PVC film etc, for printing quality checking.

Features:

1.Imported PLC integrated control is used in electrical control system, human-machine communication is carried out by touch screen, Set and display working parameters according to the requirements from different products.

2.Vector frequency-converting is adopted for unwinding and rewinding driving, automatic tension control is achieved through roll diameter calculated by PLC automatically.

3.Tensioning shaft is adopted for winding and rewinding section. (Non-shaft and pneumatic system is optional)

4.Automatic stroboscope to observe printing images is equipped in the system.If there is any defects saw by eyes, press the button of defects, the button will automatically go back to defect image. (automatic labeler is optional)

5.Automatic correction for rewinding

6.Blower e for waste edge

7.In the system, there are calculations of meter, roll diameter, automatic machine stop when lack of material etc.

8.The system has perfect mechanic, electric and pneumatic design, also good safety protection.

Technical specification:

Model

FHD -1300

Width of raw materials

1300mm

Max unwinding dia.

600mm

Doctoring speed

30-300m/min

Max rewinding dia

600mm

Web guide accuracy

±0.5mm

Slitting width

20-1300mm

Materials thickness

0.012-0.2mm

Machine weight

3500kg

Total power

13kw

Overall dimensions

1950×2700×1720mm
