BF2000 Production Line Of Washing, Filling And Capping Machine

  • BF2000 Production Line Of Washing, Filling And Capping Machine
  • BF2000 Production Line Of Washing, Filling And Capping Machine
  • BF2000 Production Line Of Washing, Filling And Capping Machine
  • BF2000 Production Line Of Washing, Filling And Capping Machine
BF2000 Production Line Of Washing, Filling And Capping Machine

This production line completes bottle semi-auto washing, filling, capping, label shrink in one operation

Washing, Filling And Capping Machine Production Line

Product Feature:

This production line completes bottle semi-auto washing, filling, capping, label shrink in one operation. It applies to fill plastic bottle or glass bottle with liquid like water, wine and juice and so on, whose capacity is 2000BPH (standard 500ml). Bottle volume varies from 300ml to 1500ml. This production line fits to small or medium amount productivity.The washer is semi automatic bottle-washing machine. It is widely used in beer, wine, juice, soy source, vinegar and products like that. It is especially suitable for small or medium amount productivity. Bottles need man-feed, but other jobs are done by machine automatically.

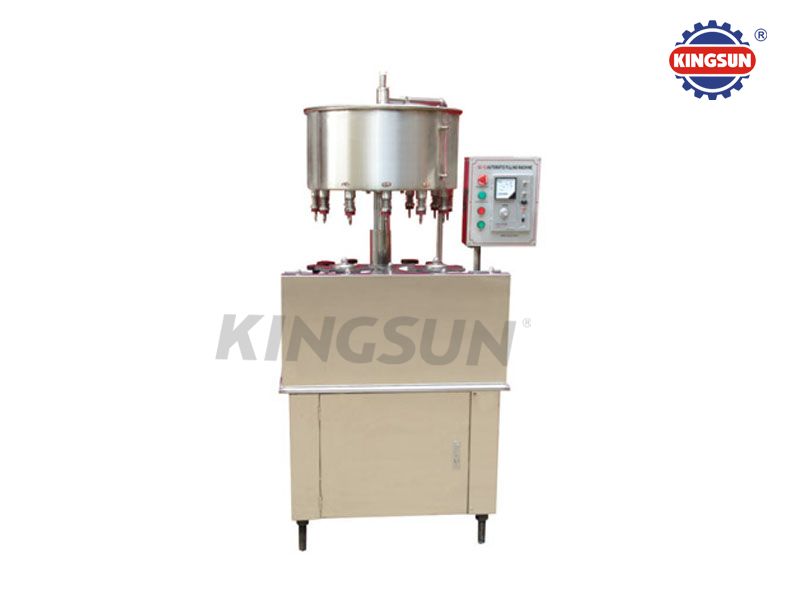

The filler can accurately fill liquid without gas, such as pure water, white spirit, wine, fruit juice and fruit syrup. It also can fill other liquid, such as vinegar, milk and pesticide. The filler works in sealed condition without pollution from outside.

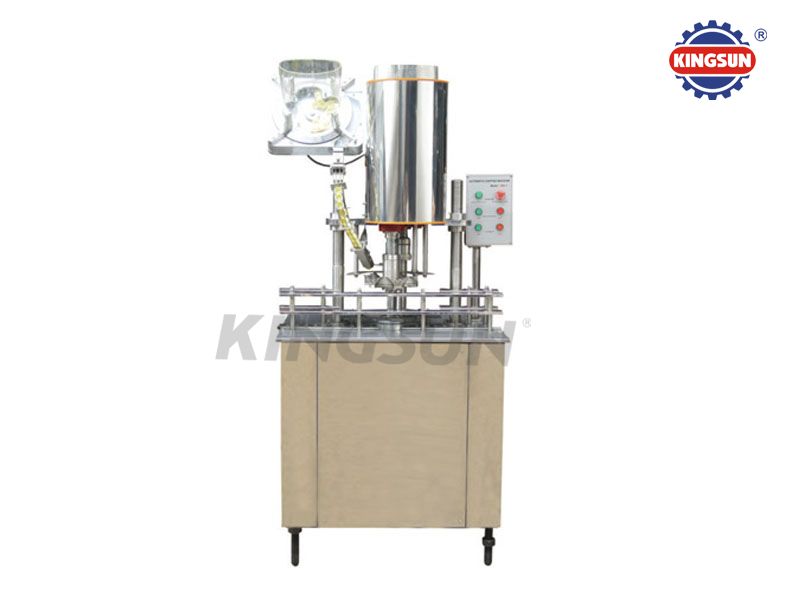

The machine can automatically seal cylinder-type bottles with plastic or aluminum theft-proof capsule. With perfect performance, reliable operation, easy maintenance, it is widely used in automatic packing lines for various kinds of wine and drink.

This label shrink machine adopts infrared radiation to shrink PVC/POP film label in the middle of bottle, with Intelligent digital temperature control of shrink tunnel. Machine is able to be designed to shrink label on the top of bottle as your requirement.

Technical Specifications:

Model & Name

CP-30 Washer



GC-12 Filler

YQX-3 Capper

BSL1535 Labeler

Conveyor

Capacity

1500-2000 BPH

1500-3000BPH

2000BPH

1500-2000BPH

Working Position

30 Header

12 Header

1 Header



Volume of bottle

200-1500ML

200-1500ML

350-1500ML

200-1500ML

Power

0.55Kw 220/380V



0.75KW, 220V/380V

0.55KW, 220V/380V

3.5KW, 220V/380V

Dimension(mm)

1000x1000x1400

1050*950*1900

1050*950*1900

1050*600*800

 4 meters

Weight

180KGS

450KGS

500KGS

65KGS


Please write more details of your specific requirement, so our sales team can provide you right machine you need.
