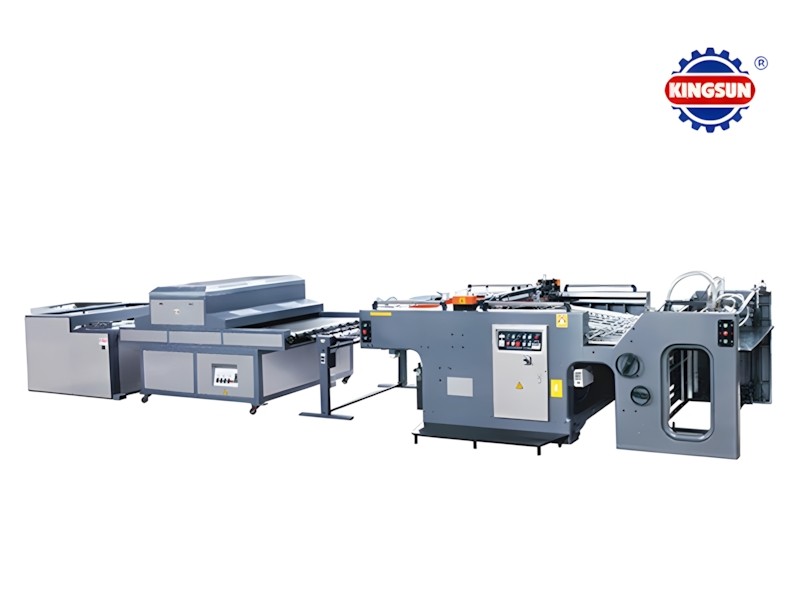

Automatic swing cylinder screen prining machines

Automatic swing cylinder screen prining machines

KJB series automatic swing cylinder screen printing machine is automatic screen printing press of high precision, with reasonable machine structure, stable, adopts world reliable technology, it is suitable for soft and half-soft materials thickness range of 100-350 gsm

Automatic swing cylinder screen prining machines

KJB series automatic swing cylinder screen printing machine is automatic screen printing press of high precision, with reasonable machine structure, stable, adopts world reliable technology, it is suitable for soft and half-soft materials thickness range of 100-350 gsm, motor speed frequency control, easy for operation and maintenance, generally just one operator need for running the printing press. This machine can be used for all kinds of screen print, especially good for print gold colors and UV spot printing, etc. The fully automatic printing part can equip the UV dryer and stacker into production line, efficient for UV spot printing and other special required screen printing.

Main specifications:

 Model

KJB-720

KJB-780

KJB-1020

Max paper size

720×520mm

780×540mm

1020×720mm

Min paper size

350×270mm

350×270mm

500×350mm

Max printing area

720×500mm

780×520mm

1020×700mm

Size of screen frame

880×880mm

940×940mm

1280×1140mm

Paper weight

108-400 gsm

Paper margin

≤ 15mm

Precision of overprint

≤ 0.15mm

Pile height

700mm

Printing speed

1000-3600 pcs/h

1000-3300 pcs/h

1000-2500 pcs/h

Power

3P 380V 10.25KW

3P 380V 10.25KW

3P 380V 10.35KW

Total weight

3500kg

3800kg

5000kg

Overall dimension

4100 x 1990 x 1270 mm

4200 x 2100 x 1270mm

4570 x 2750 x 1450mm

Please write more details of your specific requirement, so our sales team can provide you right machine you need.
