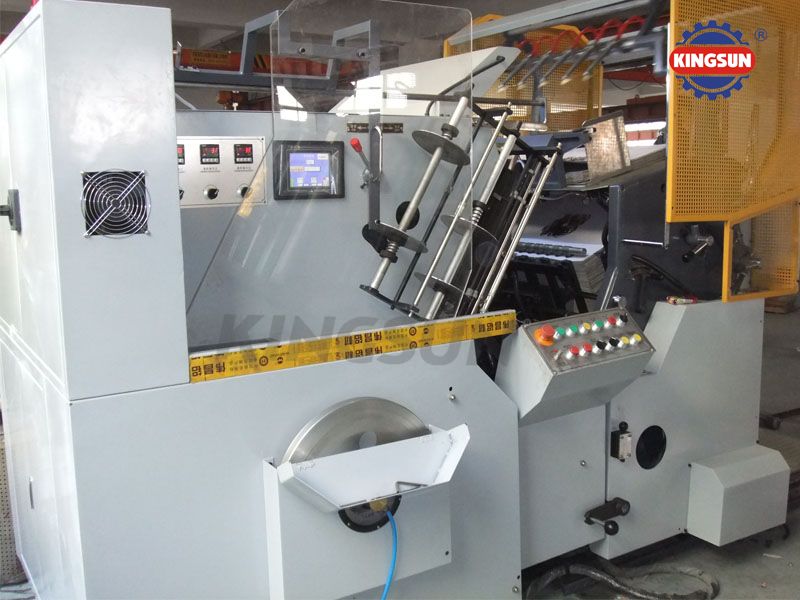

ATML-800 Automatic Hot Foil Stamping & Die-cutting Machines

1.Designed for paper & film’s hot stamping & die cutting, able to feed, die cut, collect in one cycle.
2.Composed of main 4 parts: main motor, hot stamping unit, automatic feeder and electrics; the motor driven the crankshaft with the platen for running up and down, able to hot stamp and die cut with the pressure adjusting structure.

ATML-800 Automatic Hot Foil Stamping & Die-cutting Machines

Features:

1.Designed for paper & film’s hot stamping & die cutting, able to feed, die cut, collect in one cycle.

2.Composed of main 4 parts: main motor, hot stamping unit, automatic feeder and electrics; the motor driven the crankshaft with the platen for running up and down, able to hot stamp and die cut with the pressure adjusting structure.

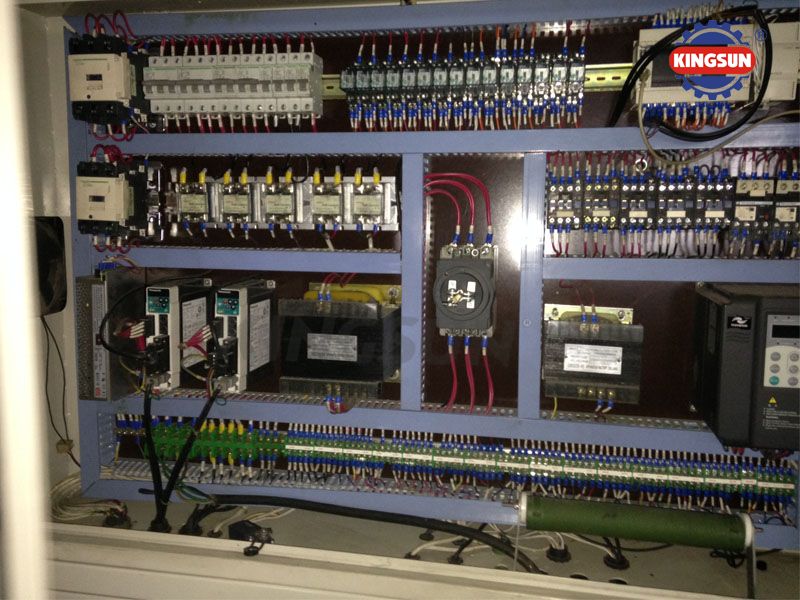

3.The electrics include main motor control, feeder/ collector, foil feeder control, the whole machine is computer controlled

4.With automatic lubrication system

Technical specifications:

Max. sheet size

780X560mm

Min. sheet size

280X220mm

Max. feeding pile height

800mm

Max. collecting pile height

160mm

Max. working pressure

110 Tons

Rated power

12KW

Air pump displacement

40m3 /h

Paper range

100-2000g/m2

Max. mechanical speed

1500s/h, paper thickness<150g/m2 ; 2500s/h,  paper thickness>150g/m2

Machine noise

<81db

Power of electric plate

9KW

Overall dimensions

3700 x 1910 x 2200mm

Weight

4500kg
